Same model may have multiple batches, images only for reference.

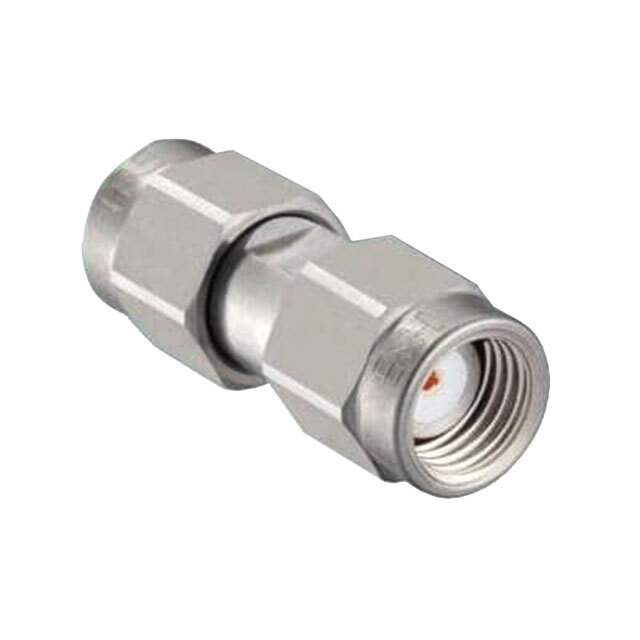

SMA(R)-A-PP Real Image
Same model may have multiple batches, images only for reference.

SMA(R)-A-PP

Part No SMA(R)-A-PP
Manufacturer Hirose Electric Co Ltd
Catalog Coaxial Connectors (RF) - Adapters
Datasheet
SMA(R)-A-PP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF) - Adapters
Mfr Hirose Electric Co Ltd
Series RP-SMA
Package Bulk
Adapter Type Plug to Plug
Conversion Type Same Series
Adapter Series RP-SMA to RP-SMA
Center Gender Female to Female
Convert From (Adapter End) RP-SMA Plug, Female Socket
Convert To (Adapter End) RP-SMA Plug, Female Socket
Impedance 50Ohm
Style Straight
Mounting Type Free Hanging (In-Line)
Fastening Type Threaded, Threaded
Frequency - Max 18 GHz
Center Contact Plating Gold
Body Material Stainless Steel
Body Finish Gold; Passivated
Center Contact Material Brass
Dielectric Material Polytetrafluoroethylene (PTFE)
Mating Cycles 1000
Temperature Range - Operating -40°C ~ 85°C
Base Product Number SMA
Other Names H125728,323-0127-0-00
Standard Package 20
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4010
Win Source Part Number 1294149-SMA(R)-A-PP
Ultra Librarian 3D Model Ultra Librarian SMA(R)-A-PP CAD Model

Description

The Hirose Electric Co Ltd connector with Win Source Part Number 1294149-SMA(R)-A-PP is a plug to plug adapter type with a straight style and RP-SMA to RP-SMA adapter series.

  • Win Source Part Number: 1294149-SMA(R)-A-PP
  • Adapter Type: Plug to plug
  • Style: Straight style
  • Adapter Series: RP-SMA to RP-SMA
  • Frequency Range: 18 GHz
  • Impedance: 50Ohm
  • Body Material: Stainless steel
  • Body Finish: Gold and passivated
  • Center Contact Material: Brass
  • Center Contact Plating: Gold
  • Mounting Type: Free hanging (in-line)
  • Temperature Range: -40°C to 85°C
