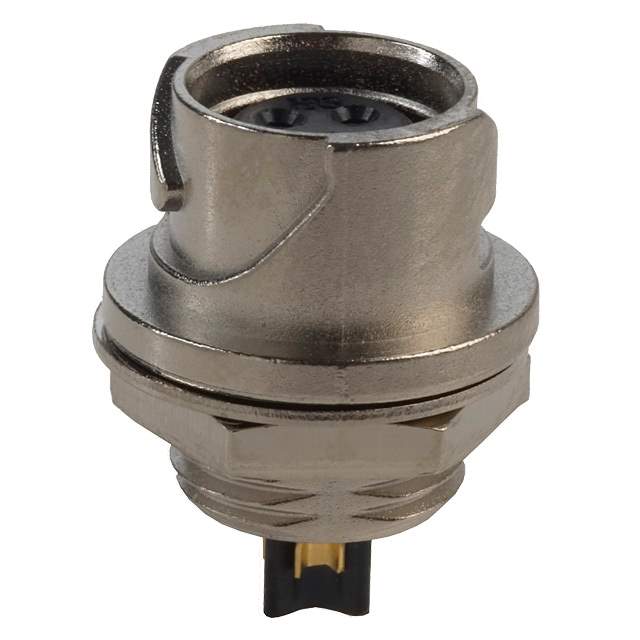

LF07WBR-3S Real Image
Same model may have multiple batches, images only for reference.

LF07WBR-3S

Part No LF07WBR-3S
Manufacturer Hirose Electric Co Ltd
Catalog Circular Connectors - Assemblies
Description CONN RCPT FMALE 3P GOLD SLDR CUP / 3 Position Circular Connector Receptacle, Female Sockets Solder Cup
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors>Circular Connector Assemblies
Manufacturer Hirose Electric Co Ltd
Packaging Bulk
Connector Type Receptacle, Female Sockets
Number of Positions 3
Shell Size - Insert 7
Mounting Panel Mount
Mounting Feature Bulkhead - Rear Side Nut
Termination Solder Cup
Fastening Type Bayonet Lock
Orientation Keyed
Primary Material Metal
Shell Material Zinc Alloy
Shell Finish Nickel
Contact Finish - Mating Gold
Color Silver
Ingress Protection IP67/IP68 - Dust Tight, Waterproof
Material Flammability Rating UL94 V-0
Current Rating (Amps) 5A
Voltage Rating 125VAC, 175VDC
Temperature Range - Operating -25°C ~ 85°C
Contact Material Copper Alloy
Contact Finish Thickness - Mating 8.00µin (0.203µm)
Insert Material Polyphenylene Sulfide (PPS)
Applications Industrial, Telecommunications
Base Product Number LF07WBR
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4020
Other Part Number HR546,136-1004-5-00,LF07WBR3S,*LF07WBR-3S
Standard Package 60
Win Source Part Number 1334479-LF07WBR-3S
Ultra Librarian 3D Model Ultra Librarian LF07WBR-3S CAD Model

Description

The Hirose Electric Co Ltd LF07WBR-3S is a high-quality circular connector assembly that is designed for industrial and telecommunications applications.

  • Positions: 3
  • Voltage Rating: 125VAC, 175VDC
