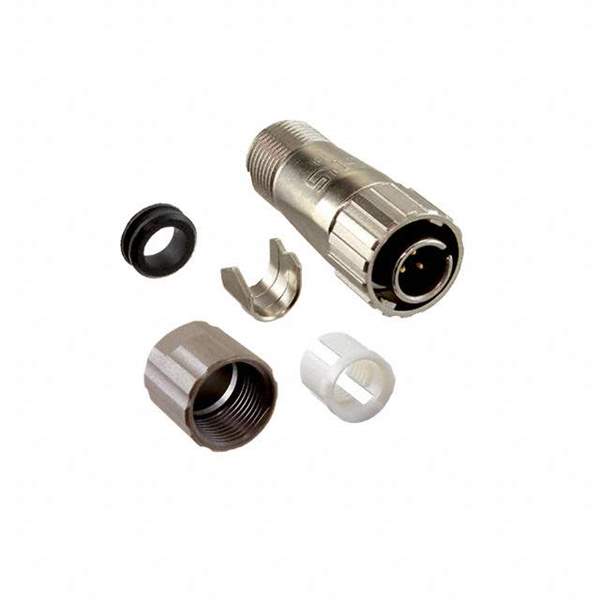

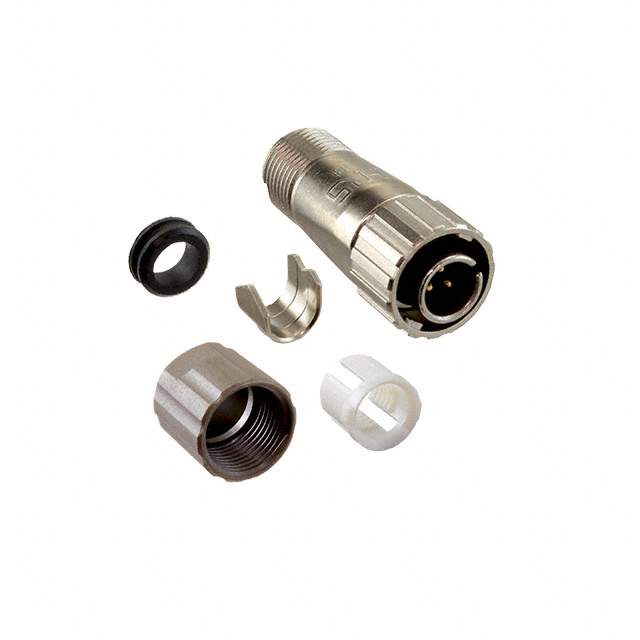

LF07WBP-3P(31) Real Image
Same model may have multiple batches, images only for reference.

LF07WBP-3P(31)

Part No LF07WBP-3P(31)
Manufacturer Hirose Electric Co Ltd
Catalog Circular Connectors - Assemblies
Description CONN PLUG MALE 3P GOLD SLDR CUP / 3 Position Circular Connector Plug, Male Pins Solder Cup
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Circular Connectors - Circular Connector Assemblies
Mfr Hirose Electric Co Ltd
Series LF
Package Bulk
Connector Type Plug, Male Pins
Number of Positions 3
Shell Size - Insert 7
Mounting Type Free Hanging (In-Line)
Termination Solder Cup
Fastening Type Bayonet Lock
Orientation Keyed
Primary Material Metal
Shell Material Zinc Alloy
Shell Finish Nickel
Contact Finish - Mating Gold
Color Brown, Silver
Ingress Protection IP67/IP68 - Dust Tight, Waterproof
Material Flammability Rating UL94 V-0
Features Backshell, Cable Clamp, Coupling Nut, Strain Relief
Shielding Shielded
Current Rating (Amps) 5A
Voltage Rating 125VAC, 175VDC
Cable Opening 0.197" (5.00mm)
Temperature Range - Operating -25°C ~ 85°C
Backshell Material, Plating Zinc Alloy, Nickel
Contact Material Copper Alloy
Contact Finish Thickness - Mating 7.87µin (0.200µm)
Insert Material Polyphenylene Sulfide (PPS)
Applications Industrial, Telecommunications
Base Product Number LF07WBP
Standard Package 50
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.69.4020
Win Source Part Number 1349403-LF07WBP-3P(31)
Ultra Librarian 3D Model Ultra Librarian LF07WBP-3P(31) CAD Model

Description

The Hirose Electric Co Ltd LF series circular connector assembly is a plug connector with male pins.

  • Connector Type: Plug
  • Contact Type: Male Pin
  • Fastening Type: Bayonet Lock
  • Termination: Solder Cup
  • Number of Positions: 3
  • Color: Brown, Silver
  • Mounting Type: Free Hanging (In-Line)
  • Shell Size - Insert: 7
  • Cable Opening: 0.197" (5.00mm)
  • Voltage Rating: 125VAC, 175VDC
  • Ingress Protection: IP67/IP68 - Dust Tight, Waterproof
  • Shielding: Shielded
  • Material Flammability Rating: UL94 V-0
  • Operating Temperature: -25°C ~ 85°C
  • Packaging: Bulk
  • Standard Package: 50
