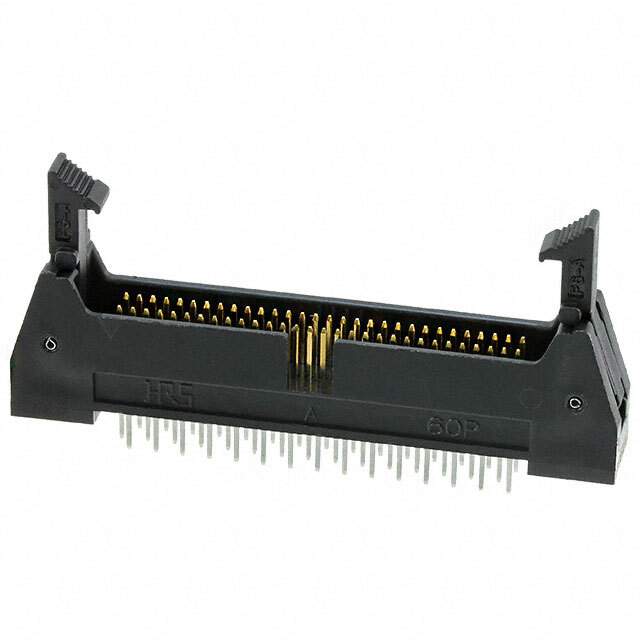

Same model may have multiple batches, images only for reference.

HIF6-60PA-1.27DSA(71)

Get a Quote

Part No	HIF6-60PA-1.27DSA(71)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 60POS 1.27MM / Connector Header Through Hole 60 position 0.050" (1.27mm)
Datasheet	HIF6-60PA-1.27DSA(71) Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Hirose Electric Co Ltd
Series	HIF6
Package	Tray
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.050" (1.27mm)
Number of Positions	60
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Latch Lock/Eject Hooks
Contact Length - Mating	0.217" (5.50mm)
Contact Length - Post	0.110" (2.79mm)
Overall Contact Length	0.563" (14.30mm)
Insulation Height	0.606" (15.39mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	8.00µin (0.203µm)
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polybutylene Terephthalate (PBT)
Features	Keying Slot, Mounting Flange
Temperature Range - Operating	-55°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	0.5A
Voltage Rating	300V
Contact Finish Thickness - Post	78.7µin (2.00µm)
Base Product Number	HIF6
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	HIF6-60PA-1.27DSA(71)-ND,HIF6-60PA-1.27DSA(71)-ND,HIF6-60PA-1.27DSA(71),H123945,630-0108-8-71,-HIF6-60PA-1.27DSA(71)
Standard Package	25
Win Source Part Number	1062881-HIF6-60PA-1.27DSA(71)
Ultra Librarian 3D Model	Ultra Librarian HIF6-60PA-1.27DSA(71) CAD Model

Alternative Products

Description

The HIF6-60PA-1.27DSA(71) is a 60-position male pin header connector with a board to cable/wire style.

Positions: 60
Pitch: 0.050 inches (1.27mm)
Insulation Material: Polybutylene terephthalate (PBT)
Insulation Color: Black
Contact Material: Brass with gold plating for mating and tin plating for post
Connector Design: Shrouded-4 wall
Fastening: Latch lock/eject hooks
Voltage Rating: 300V
Current Rating: 0.5A
Contact Length (Mating): 0.217 inches (5.50mm)
Contact Length (Post): 0.110 inches (2.79mm)
Overall Contact Length: 0.563 inches (14.30mm)
Insulation Height: 0.606 inches (15.39mm)
Temperature Range: -55°C to 85°C
Flammability Rating: UL94 V-0
