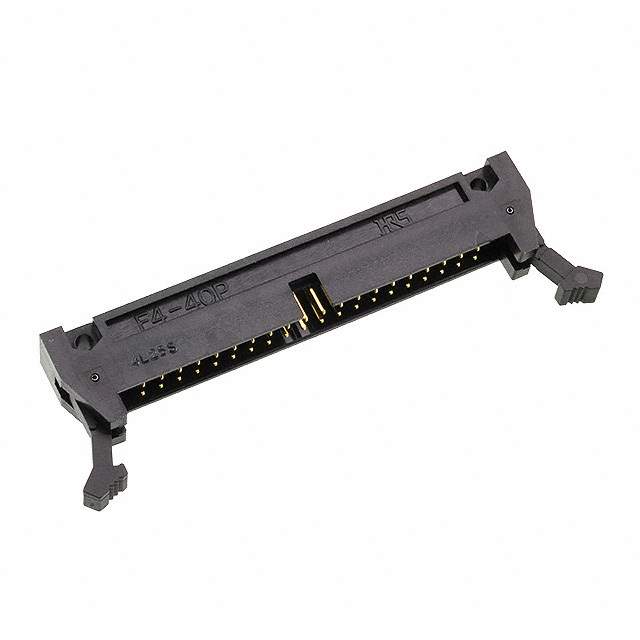

Same model may have multiple batches, images only for reference.

HIF4-40P-3.18DS

Name: HIF4-40P-3.18DS
Brand: Hirose Electric Co Ltd
SKU: 1350649
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	HIF4-40P-3.18DS
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN HEADER R/A 40POS 3.18MM / Connector Header Through Hole, Right Angle 40 position 0.125" (3.18mm)
Datasheet	HIF4-40P-3.18DS Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Hirose Electric Co Ltd
Series	HIF4
Package	Tray
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.125" (3.18mm)
Number of Positions	40
Number of Rows	2
Row Spacing - Mating	0.125" (3.18mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole, Right Angle
Termination	Solder
Fastening Type	Latch Lock/Eject Hooks
Contact Length - Mating	0.201" (5.10mm)
Contact Length - Post	0.138" (3.50mm)
Insulation Height	0.394" (10.00mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	8.00µin (0.203µm)
Contact Material	Phosphor Bronze
Insulation Material	Polybutylene Terephthalate (PBT)
Features	Keying Slot, Mounting Flange
Temperature Range - Operating	-55°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3A
Voltage Rating	300V
Base Product Number	HIF4
Standard Package	15
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1350649-HIF4-40P-3.18DS
Ultra Librarian 3D Model	Ultra Librarian HIF4-40P-3.18DS CAD Model

Alternative Products

Description

The Hirose Electric Co Ltd HIF4-40P-3.18DS is a 40-position male pin header connector with a pitch of 3.18mm.

Positions: 40
Pitch: 3.18mm
Application: Board-to-Cable/Wire
Current Rating: 3A
Voltage Rating: 300V
Contact Material: Phosphor Bronze
Contact Finish: Gold
Insulation Material: Polybutylene Terephthalate (PBT)
Insulation Color: Black
Fastening Type: Latch Lock/Eject Hooks
Shrouded: 4 Walls
RoHS Compliant: Yes
Temperature Range: -55°C to 85°C
