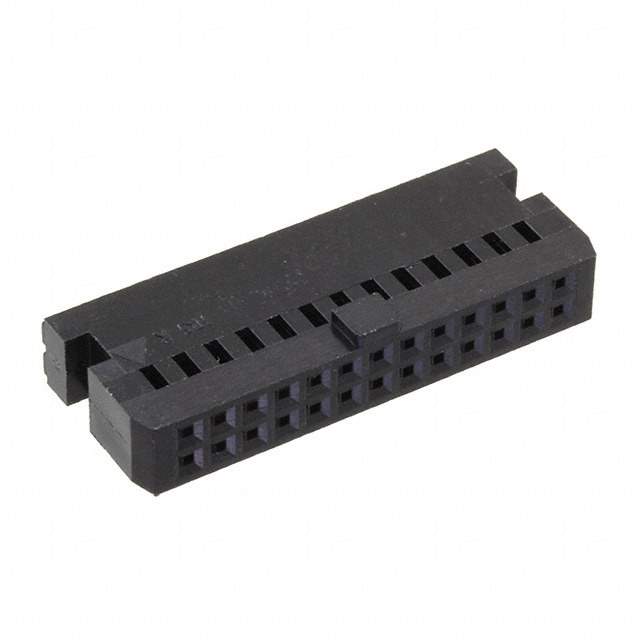

Same model may have multiple batches, images only for reference.

HIF3BA-26D-2.54C

Name: HIF3BA-26D-2.54C
Brand: Hirose Electric Co Ltd
SKU: 1332822
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	HIF3BA-26D-2.54C
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN RCPT HSG 26POS 2.54MM / 26 Rectangular Connectors - Housings Receptacle Black 0.100" (2.54mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Rectangular Connector Housings
Manufacturer	Hirose Electric Co Ltd
Packaging	Bulk
Product Status	Obsolete
Connector Type	Receptacle
Contact Type	Female Socket
Number of Positions	26
Pitch	0.100" (2.54mm)
Number of Rows	2
Row Spacing	0.100" (2.54mm)
Mounting	Free Hanging (In-Line)
Contact Termination	Crimp
Color	Black
Features	Polarizing Key
Note	Contacts Not Included
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.8000
Other Part Number	H123729,HIF3BA-26D-2.54C-ND,HIF3BA-26D-2.54C,-HIF3BA-26D-2.54C,HIF3BA-26D-2.54C-ND,610-1044-8-00
Standard Package	50
Win Source Part Number	1332822-HIF3BA-26D-2.54C
Ultra Librarian 3D Model	Ultra Librarian HIF3BA-26D-2.54C CAD Model

Alternative Products

Description

The Hirose Electric Co Ltd 1332822-HIF3BA-26D-2.54C is a rectangular connector housing with 26 positions and 0.100" (2.54mm) pitch.

Manufacturer: Hirose Electric Co Ltd
Positions: 26
Pitch: 0.100" (2.54mm)
Package: Bulk
Connector Type: Receptacle connector
Feature: Polarizing key
Contact Type: Female socket
Rows: Two
Row Spacing: 0.100" (2.54mm)
Termination: Crimp
Contacts Included: No
Standard Package: 50
Status: Obsolete
RoHS Compliance: Yes
MSL Level: 1 (Unlimited)
ECCN: EAR99
HTSUS: 8536.69.8000
