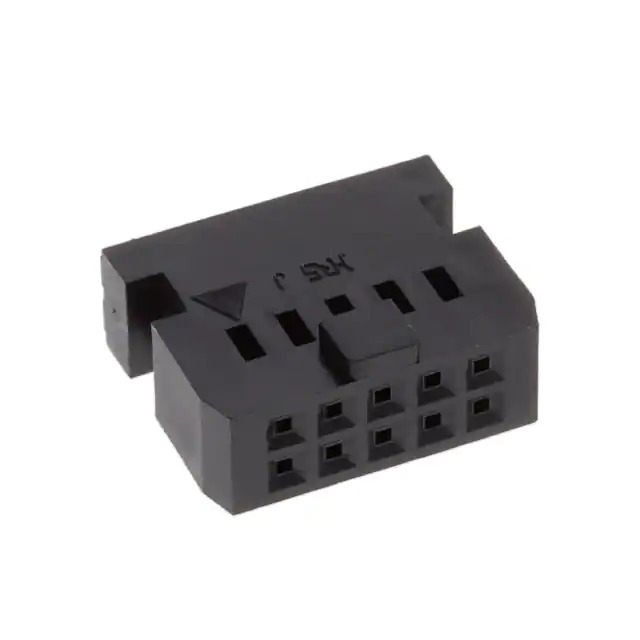

Same model may have multiple batches, images only for reference.

HIF3BA-10D-2.54C(63)

Name: HIF3BA-10D-2.54C(63)
Brand: Hirose Electric Co Ltd
SKU: 1365857
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	HIF3BA-10D-2.54C(63)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN SOCKET HSG 10POS 2.54MM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Housings
Mfr	Hirose Electric Co Ltd
Series	HIF3B
Package	Bag
Product Status	Active
Connector Type	Socket
Contact Type	Female Socket
Number of Positions	10
Pitch	0.100" (2.54mm)
Number of Rows	2
Row Spacing	0.100" (2.54mm)
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Fastening Type	-
Color	Black
Features	Polarizing Key
Temperature Range - Operating	-55°C ~ 85°C
Note	Contacts Not Included
Base Product Number	HIF3
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.8000
Win Source Part Number	1365857-HIF3BA-10D-2.54C(63)
Ultra Librarian 3D Model	Ultra Librarian HIF3BA-10D-2.54C(63) CAD Model

Alternative Products

Description

The Hirose Electric Co Ltd HIF3B series is a rectangular connector housing. It is a socket connector with a pitch of 0.100" (2.54mm) and a total of 10 positions.

Series: HIF3B
Connector Type: Socket
Pitch: 0.100" (2.54mm)
Number of Positions: 10
Mounting Type: Free Hanging (In-Line)
Feature: Polarizing Key
Contact Termination: Crimp
Color: Black
Contacts Included: No
