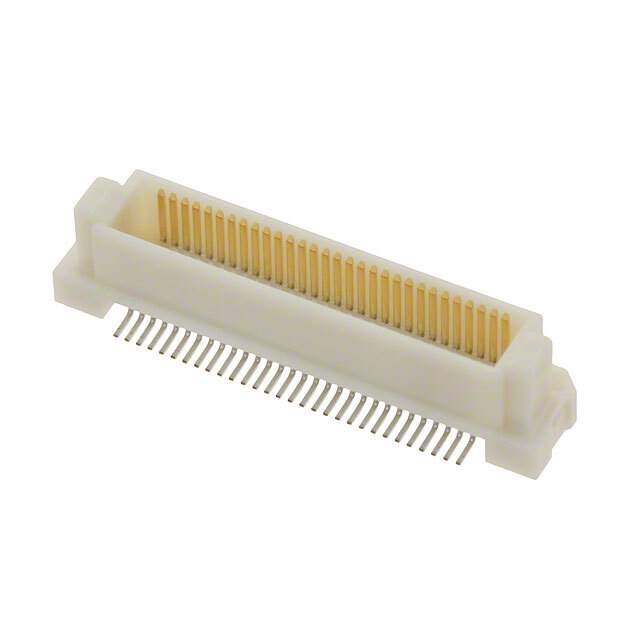

Same model may have multiple batches, images only for reference.

FX8C-60P-SV4(92)

Name: FX8C-60P-SV4(92)
Brand: Hirose Electric Co Ltd
SKU: 1332649
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	FX8C-60P-SV4(92)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN HDR 60POS SMD GOLD / 60 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Arrays, Edge Type, Mezzanine (Board to Board)
Manufacturer	Hirose Electric Co Ltd
Packaging	Reel - TR
Connector Type	Header, Outer Shroud Contacts
Number of Positions	60
Pitch	0.024" (0.60mm)
Number of Rows	2
Mounting	Surface Mount
Features	Board Guide
Contact Finish	Gold
Mated Stacking Heights	9mm, 14mm
Height Above Board	0.333" (8.45mm)
Base Product Number	FX8
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	578-0581-8-92
Standard Package	500
Win Source Part Number	1332649-FX8C-60P-SV4(92)
Ultra Librarian 3D Model	Ultra Librarian FX8C-60P-SV4(92) CAD Model

Alternative Products

Description

The Hirose Electric Co Ltd FX8C-60P-SV4(92) is a connector that is part of the rectangular connectors, arrays, edge type, mezzanine (board to board) category.

Positions: 60
Pitch: 0.024 inches (0.60mm)
Contact Header Type: outer shroud contact
Contact Finish: gold
Height Above Board: 0.333 inches (8.45mm)
Package: reel - TR package
Popularity: medium
RoHS Compliant: Yes
