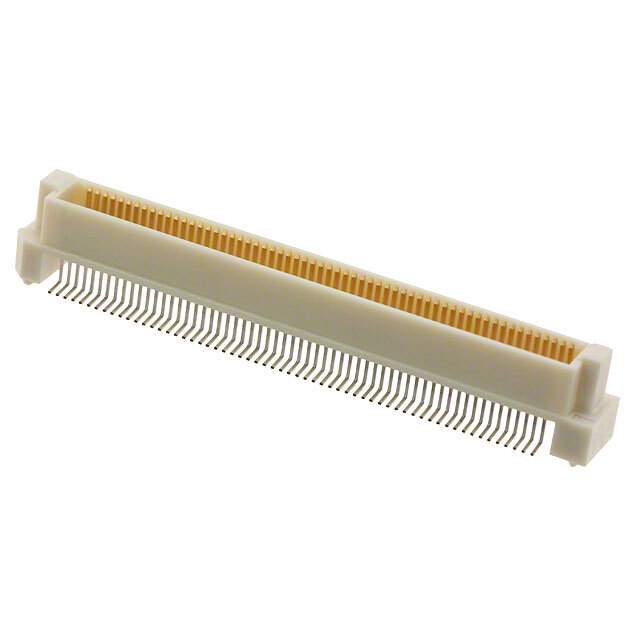

FX8C-120S-SV5(92) Real Image
Same model may have multiple batches, images only for reference.

FX8C-120S-SV5(92)

Part No FX8C-120S-SV5(92)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN RCPT 120POS SMD GOLD / 120 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Arrays, Edge Type, Mezzanine (Board to Board)
Manufacturer Hirose Electric Co Ltd
Packaging Reel - TR
Connector Type Receptacle, Center Strip Contacts
Number of Positions 120
Pitch 0.024" (0.60mm)
Number of Rows 2
Mounting Surface Mount
Features Board Guide
Contact Finish Gold
Contact Finish Thickness 39.4µin (1.00µm)
Mated Stacking Heights 10mm, 11mm, 12mm, 14mm, 16mm
Height Above Board 0.352" (8.95mm)
Base Product Number FX8
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 578-0826-3-92,Q5703000A
Standard Package 500
Win Source Part Number 1332659-FX8C-120S-SV5(92)
Ultra Librarian 3D Model Ultra Librarian FX8C-120S-SV5(92) CAD Model

Description

The FX8C 120S SV5(92) Rectangular Connector is a high-quality connector that features a receptacle with center strip contacts and a surface mount mounting type.

  • Pitch: 0.024" (0.60mm)
  • Positions: 120
  • Board Guide: Yes
  • Contact Finish: gold
  • Contact Finish Thickness: 39.4µin (1.00µm)
  • Mated Stacking Height: 10mm, 11mm, 12mm, 14mm, 16mm
  • Height Above Board: 0.352" (8.95mm)
  • Application: arrays, edge type, mezzanine (board to board)
  • Packaging: reel - TR
