Same model may have multiple batches, images only for reference.

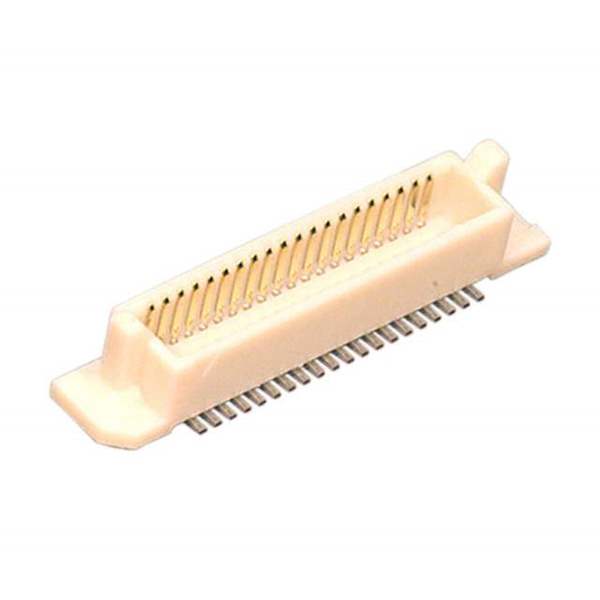

FX6-40P-0.8SV2 Real Image
Same model may have multiple batches, images only for reference.

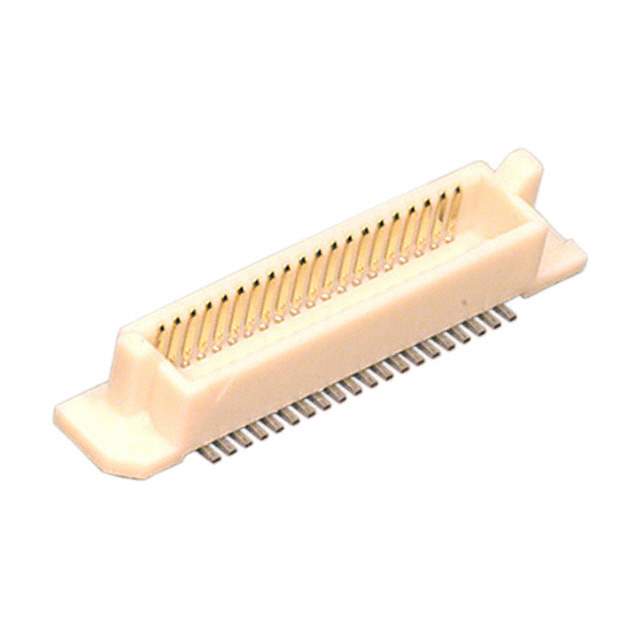

FX6-40P-0.8SV2

Part No FX6-40P-0.8SV2
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description 0.8mm Pitch Stacking Height 5 to 9mm Connector | CONN HDR 40POS SMD GOLD
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Hirose Electric Co Ltd
Packaging Tube
Status Obsolete
Connector Type Header, Outer Shroud Contacts
Number of Positions 40
Pitch 0.031" (0.80mm)
Number of Rows 2
Mounting Style SMD
Features Board Guide
Contact Finish Gold
Mated Stacking Heights 7mm, 9mm
Height Above Board 0.275" (6.99mm)
Manufacturer Pack Quantity 22
MSL Level 1 (Unlimited)
Win Source Part Number 1176229-FX6-40P-0.8SV2
Manufacturer Homepage www.hirose-connectors.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian FX6-40P-0.8SV2 CAD Model

Description

The Hirose Electric Co Ltd Header Connector is a 40-position, SMD connector with an outer shroud contact.

  • Pitch: 0.031" (0.80mm)
  • Features: board guide for easy and accurate placement
  • Contact finish: gold
  • Height above board: 0.275" (6.99mm)
  • Category: Connectors, Interconnects
  • Status: now obsolete
  • Supply and demand status: balanced
  • Manufacturer pack quantity: 22
  • MSL level: 1 (Unlimited)
