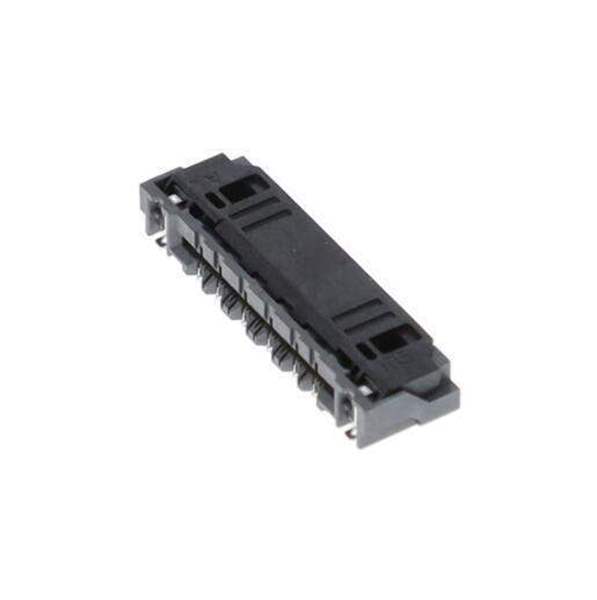

FH63S-20S-0.5SH Hirose Electric Co Ltd
Same model may have multiple batches, images only for reference.

FH63S-20S-0.5SH

Part No FH63S-20S-0.5SH
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC BOTTOM 20POS 0.5MM R/A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Hirose Electric Co Ltd
Category Connectors, Interconnects FFC, FPC (Flat Flexible) Connectors FFC, FPC (Flat Flexible) Connector Assemblies
Part Status Active
Flat Flex Type FFC, FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 20
FFC, FCB Thickness 0.30mm
Locking Feature Flip Lock, Backlock
Contact Material Copper Alloy
Win Source Part Number WS1305361-FH63S-20S-0.5SH
Ultra Librarian 3D Model Ultra Librarian FH63S-20S-0.5SH CAD Model

Description

20 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
