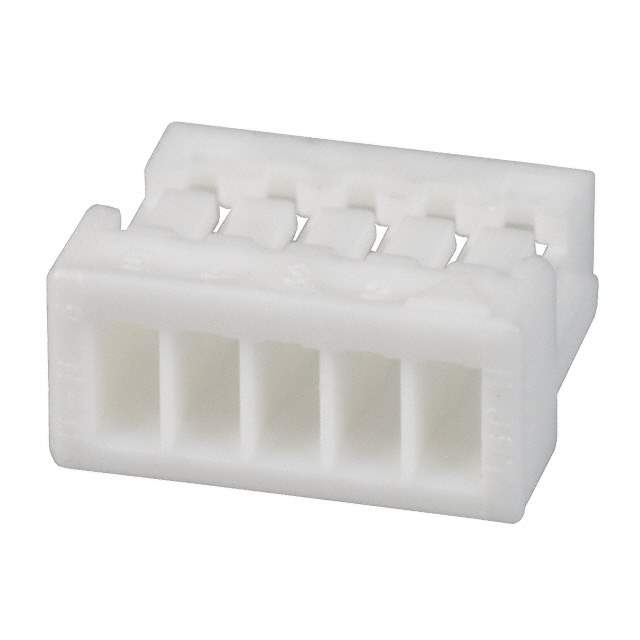

Same model may have multiple batches, images only for reference.

SHR-05V-S

Name: SHR-05V-S
Brand: JST Sales America Inc.
SKU: 1285285
Availability: InStock
Rating: 4.85 (54 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SHR-05V-S
Manufacturer	JST Sales America Inc.
Catalog	Rectangular Connectors
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Housings
Mfr	JST Sales America Inc.
Series	SH
Package	Bulk
Connector Type	Receptacle
Contact Type	Female Socket
Number of Positions	5
Pitch	0.039" (1.00mm)
Number of Rows	1
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Color	Natural
Note	Contacts Not Included
Base Product Number	SHR-05V
Other Names	SHR05VS,455-1395
Standard Package	2,000
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8538.90.6000
Win Source Part Number	1285285-SHR-05V-S
Ultra Librarian 3D Model	Ultra Librarian SHR-05V-S CAD Model

Alternative Products

Description

The SH series female socket connector is designed for use in rectangular connector housings.

Series: SH
Pitch: 0.039 inches
Positions: 5
Color: natural
Features: no special features
Connector Type: receptacle
Rows: 1
Contact Termination: crimp
Mounting Type: free hanging (in-line)
Package: bulk
Units Per Package: 2,000
Manufacturer: JST Sales America Inc.
Part Number: 1285285-SHR-05V-S
Contacts Included: no
