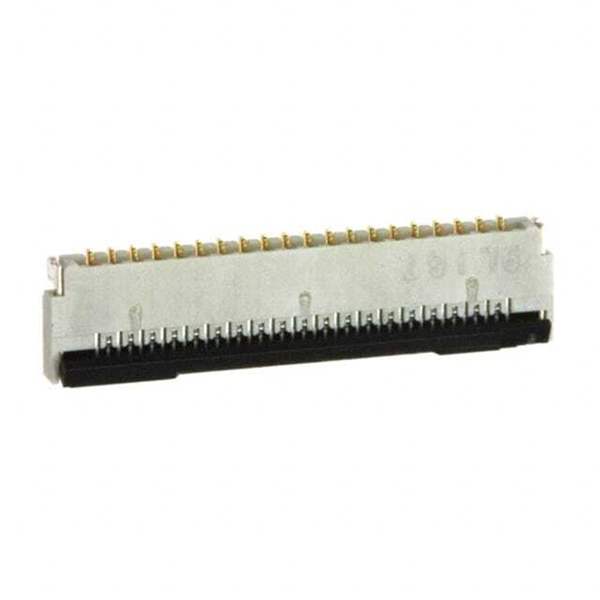

FH39-39S-0.3SHW(10)
Same model may have multiple batches, images only for reference.

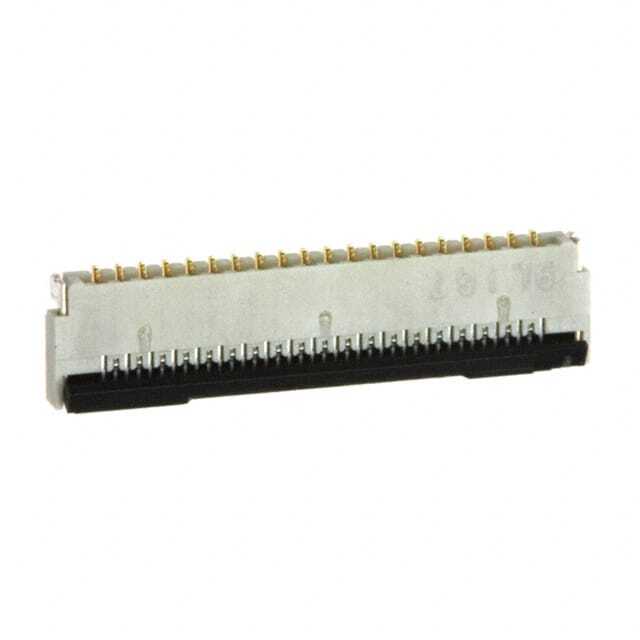

FH39-39S-0.3SHW(10)

Part No FH39-39S-0.3SHW(10)
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FPC 39POS 0.3MM R/A / 39 Position FPC Connector Contacts, Top and Bottom 0.012" (0.30mm) Surface Mount, Right Angle
Datasheet
FH39-39S-0.3SHW(10) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - FFC, FPC (Flat Flexible) Connectors - FFC, FPC (Flat Flexible) Connector Assemblies
Mfr Hirose Electric Co Ltd
Series FH39
Package Tape & Reel
Product Status Obsolete
Flat Flex Type FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Top and Bottom
Number of Positions 39
Pitch 0.012" (0.30mm)
Termination Solder
FFC, FCB Thickness 0.20mm
Height Above Board 0.044" (1.12mm)
Locking Feature Flip Lock, Backlock
Cable End Type Tapered
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP)
Actuator Material Polyamide (PA), Nylon
Features Zero Insertion Force (ZIF)
Voltage Rating 30V
Temperature Range - Operating -55°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.2A
Contact Finish Thickness 19.7µin (0.50µm)
Housing Color Beige
Actuator Color Black
Mating Cycles 10
Base Product Number FH39
Standard Package 5,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Win Source Part Number 849358-FH39-39S-0.3SHW(10)
Ultra Librarian 3D Model Ultra Librarian FH39-39S-0.3SHW(10) CAD Model

Description

The FH39-39S-0.3SHW(10) is a FFC, FPC (Flat Flexible) Connector Assembly from Hirose Electric Co Ltd.

  • Series: FH39
  • Positions: 39
  • Pitch: 0.012" (0.30mm)
  • Design: Zero Insertion Force (ZIF)
  • Termination: solder
  • Contact Finish: gold with a thickness of 19.7µin (0.50µm)
  • Housing Material: Liquid Crystal Polymer (LCP)
  • Voltage: 30V
  • Current Rating: 0.2A
  • Temperature Range: -55°C to 85°C
  • Packaging: tape & reel
  • Quantity: 5,000 pieces
  • Status: obsolete
