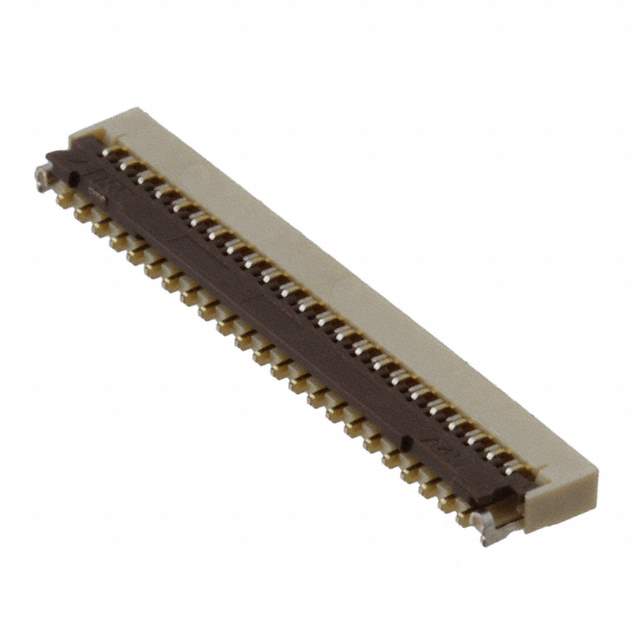

FH36-45S-0.3SHW(50) Real Image
Same model may have multiple batches, images only for reference.

FH36-45S-0.3SHW(50)

Part No FH36-45S-0.3SHW(50)
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FPC BOTTOM 45POS 0.30MM R/A / 45 Position FPC Connector Contacts, Bottom 0.012" (0.30mm) Surface Mount, Right Angle
Datasheet
FH36-45S-0.3SHW(50) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors>FFC, FPC (Flat Flexible) Connector Assemblies
Manufacturer Hirose Electric Co Ltd
Packaging Reel - TR
Flat Flex Type FPC
Mounting Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 45
Pitch 0.012" (0.30mm)
Termination Solder
FFC, FCB Thickness 0.20mm
Height Above Board 0.039" (1.00mm)
Locking Feature Flip Lock
Cable End Type Tabbed
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP)
Actuator Material Polyamide (PA), Nylon
Features Zero Insertion Force (ZIF)
Voltage Rating 30V
Temperature Range - Operating -55°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.2A
Contact Finish Thickness 19.7µin (0.50µm)
Housing Color Beige
Actuator Color Brown
Mating Cycles 10
Base Product Number FH36
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Other Part Number 580-1617-5-50
Standard Package 5,000
Win Source Part Number 1333284-FH36-45S-0.3SHW(50)
Ultra Librarian 3D Model Ultra Librarian FH36-45S-0.3SHW(50) CAD Model

Description

The Hirose Electric Co Ltd FH36-45S-0.3SHW(50) is a 45-position FFC, FPC (Flat Flexible) connector assembly with a pitch of 0.30mm.

  • Color: Beige
  • Mounting: Surface Mount, Right Angle
  • Height Above Board: 1.00mm
  • RoHS Compliant: True
  • Series: FH36
  • Packaging: Reel - TR
  • Feature: Zero Insertion Force (ZIF)
