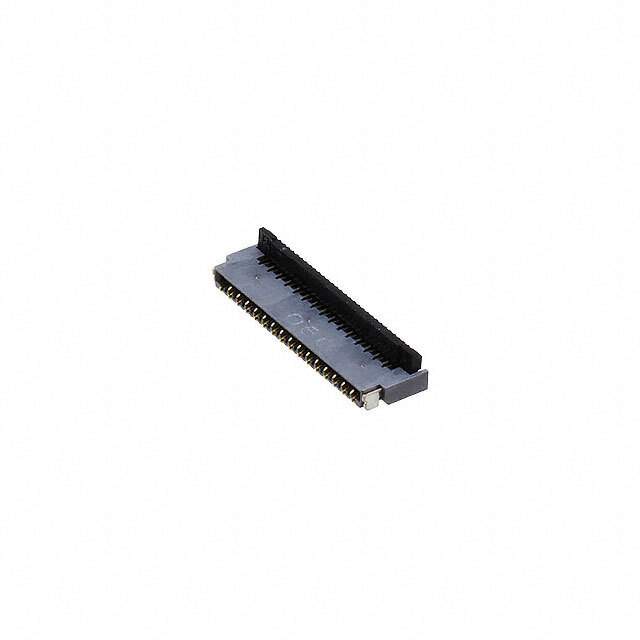

FH35C-31S-0.3SHW(99) Real Image
Same model may have multiple batches, images only for reference.

FH35C-31S-0.3SHW(99)

Part No FH35C-31S-0.3SHW(99)
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FPC 31POS 0.30MM R/A
Datasheet
FH35C-31S-0.3SHW(99) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Hirose Electric Co Ltd
Packaging Reel - TR
Status Active
Flat Flex Type FPC
Mounting Surface Mount, Right Angle
Connector/Contact Type Contacts, Top and Bottom
Number of Positions 31
Pitch 0.012" (0.30mm)
Termination Solder
FFC, FCB Thickness 0.20mm
Height Above Board 0.036" (0.90mm)
Locking Feature Flip Lock, Backlock
Cable End Type Tapered
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP)
Actuator Material Polyamide (PA), Nylon
Voltage Rating 30V
Temperature Range - Operating -55°C to 85°C
Material Flammability Rating UL94 V-0
Current Rating 0.2A
Contact Finish Thickness 1.25μin (0.03μm)
Housing Color Gray
Actuator Color Black
Mating Cycles 10
Win Source Part Number 1038803-FH35C-31S-0.3SHW(99)
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 500
Ultra Librarian 3D Model Ultra Librarian FH35C-31S-0.3SHW(99) CAD Model

Description

The Hirose Electric Co Ltd 1038803-FH35C-31S-0.3SHW(99) is a surface mount right angle connector.

  • Pitch: 0.012" (0.30mm)
  • Number of Positions: 31
  • Connector Type: FFC, FCB
  • Thickness: 0.20mm
  • Termination: Solder
  • Voltage Rating: 30V
  • Current Rating: 0.2A
  • Height Above Board: 0.036" (0.90mm)
  • Packaging: Reel
  • Locking Feature: Flip Lock and Backlock
  • Housing Material: Liquid Crystal Polymer (LCP)
  • Popularity: Popular
  • Supply and Demand Status: Sufficient
  • Quantity per Package: 500
  • Temperature Range: -55°C to 85°C
