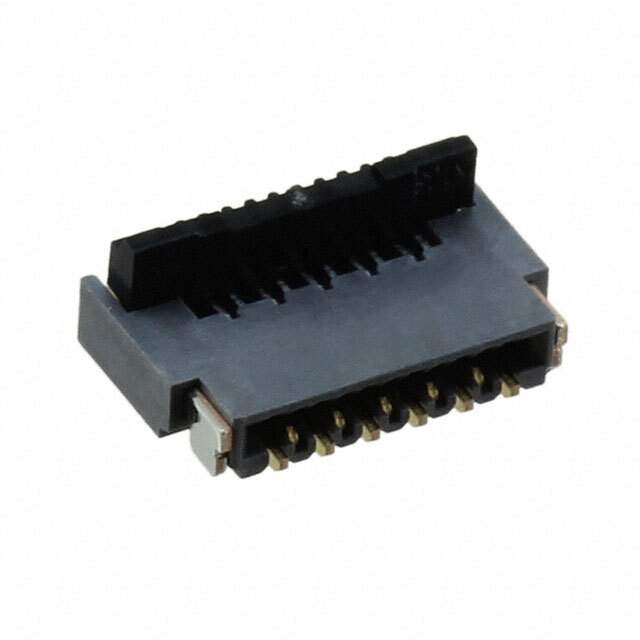

Same model may have multiple batches, images only for reference.

FH35C-11S-0.3SHW(50)

Name: FH35C-11S-0.3SHW(50)
Brand: Hirose Electric Co Ltd
SKU: 130547
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	FH35C-11S-0.3SHW(50)
Manufacturer	Hirose Electric Co Ltd
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	CONN FPC 11POS 0.30MM R/A
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Hirose Electric Co Ltd
Packaging	Reel - TR
Status	Active
Flat Flex Type	FPC
Mounting	Surface Mount, Right Angle
Connector/Contact Type	Contacts, Top and Bottom
Number of Positions	11
Pitch	0.012" (0.30mm)
Termination	Solder
FFC, FCB Thickness	0.20mm
Height Above Board	0.036" (0.90mm)
Locking Feature	Flip Lock, Backlock
Cable End Type	Tapered
Contact Finish	Gold
Housing Material	Liquid Crystal Polymer (LCP)
Actuator Material	Polyamide (PA), Nylon
Voltage Rating	30V
Temperature Range - Operating	-55°C to 85°C
Material Flammability Rating	UL94 V-0
Current Rating	0.2A
Contact Finish Thickness	12μin (0.30μm)
Housing Color	Gray
Actuator Color	Black
Mating Cycles	10
Win Source Part Number	204190-FH35C-11S-0.3SHW(50)
Popularity	Medium
Supply and Demand Status	Balance
Quantity per package	5k pcs
Ultra Librarian 3D Model	Ultra Librarian FH35C-11S-0.3SHW(50) CAD Model

Alternative Products

Description

The 204190-FH35C-11S-0.3SHW(50) is a rectangular connector from Hirose Electric Co Ltd.

Positions: 11
Pitch: 0.012" (0.30mm)
Termination: Solder
Contact Finish: Gold
Contact Finish Thickness: 12μin (0.30μm)
Voltage Rating: 30V
Current Rating: 0.2A
Height Above Board: 0.036" (0.90mm)
Flat Flex Type: FPC
Connector/Contact Type: Contacts, top and bottom
FFC, FCB Thickness: 0.20mm
Locking Feature: Flip lock, backlock
Cable End Type: Tapered
Housing Material: Liquid crystal polymer (LCP)
Actuator Material: Polyamide (PA), nylon
Material Flammability Rating: UL94 V-0
Housing Color: Gray
Mounting: Surface mount, right angle
Mating Cycle: 10
Package: Reel - TR (5k pcs)
