FH28H-80S-0.5SH(05)
Same model may have multiple batches, images only for reference.

FH28H-80S-0.5SH(05)

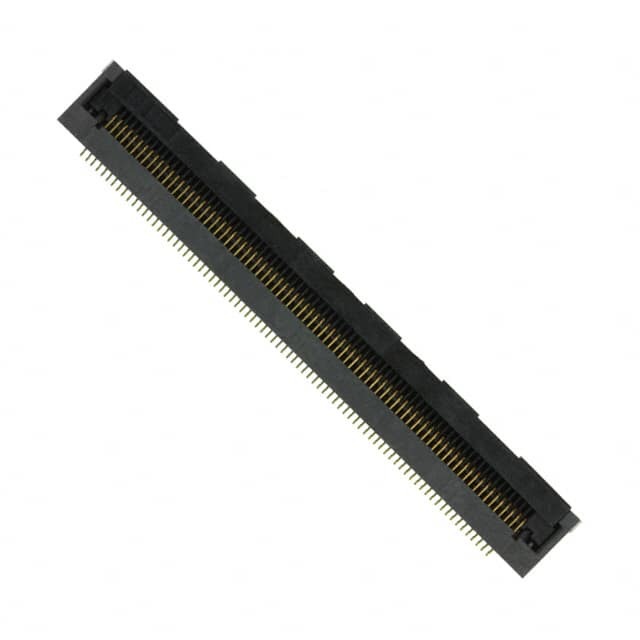

Part No FH28H-80S-0.5SH(05)
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC BOTTOM 80POS 0.5MM R/A / 80 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Datasheet
FH28H-80S-0.5SH(05) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - FFC, FPC (Flat Flexible) Connectors - FFC, FPC (Flat Flexible) Connector Assemblies
Mfr Hirose Electric Co Ltd
Series FH28
Package Tape & Reel
Product Status Active
Flat Flex Type FFC, FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 80
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.100" (2.54mm)
Locking Feature Rotary Lock
Cable End Type Tabbed
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material Liquid Crystal Polymer (LCP), Halogen Free
Features Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating 50V
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Housing Color Gray
Actuator Color Black
Mating Cycles 20
Base Product Number FH28
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Win Source Part Number 849128-FH28H-80S-0.5SH(05)
Ultra Librarian 3D Model Ultra Librarian FH28H-80S-0.5SH(05) CAD Model

Description

The FH28H-80S-0.5SH(05) is a FFC, FPC (Flat Flexible) Connector Assembly from Hirose Electric Co Ltd.

  • Series: FH28
  • Positions: 80
  • Pitch: 0.020" (0.50mm)
  • Solder Retention: Yes
  • ZIF: Yes
  • Contact Finish: Gold
  • Housing Material: Gray Liquid Crystal Polymer (LCP)
  • Halogen-Free: Yes
  • Flammability Rating: UL94 V-0
  • Actuator Color: Black
  • Mounting: Surface Mount, Right Angle
  • Voltage Rating: 50V
  • Current Rating: 0.5A
  • Operating Temperature: -40°C to 105°C
  • Package: Tape & Reel
  • Standard Package: 2,000 pcs
  • Mating Cycle: 20
  • ECCN: EAR99
  • MSL: 1 (Unlimited)
