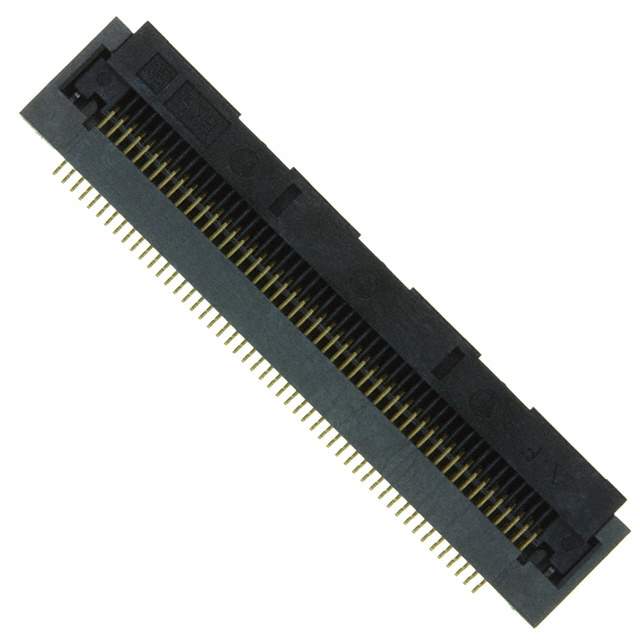

FH28D-50S-0.5SH(05) Real Image
Same model may have multiple batches, images only for reference.

FH28D-50S-0.5SH(05)

Part No FH28D-50S-0.5SH(05)
Manufacturer Hirose Electric Co Ltd
Catalog Flat Flex Cables (FFC, FPC)
Datasheet
FH28D-50S-0.5SH(05) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors
Mfr Hirose Electric Co Ltd
Series FH28
Package Tape & Reel (TR)
Flat Flex Type FFC, FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 50
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.100" (2.54mm)
Locking Feature Rotary Lock
Cable End Type Tabbed
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material Liquid Crystal Polymer (LCP), Halogen Free
Features Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating 50V
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Housing Color Gray
Actuator Color Black
Mating Cycles 20
Base Product Number FH28
Other Names 586-1808-1-05
Standard Package 2,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Win Source Part Number 1294103-FH28D-50S-0.5SH(05)
Ultra Librarian 3D Model Ultra Librarian FH28D-50S-0.5SH(05) CAD Model

Description

The Hirose Electric Co Ltd 1294103-FH28D-50S-0.5SH(05) is a connector with 50 positions and a pitch of 0.020 inches (0.50mm).

  • Positions: 50
  • Pitch: 0.020 inches (0.50mm)
  • Features: Solder Retention, Zero Insertion Force (ZIF) with Rotary Lock
  • Connector/Contact Type: Bottom Contacts
  • Cable End Type: Tabbed
  • Voltage Rating: 50V
  • Current Rating: 0.5A
  • Housing Material: Liquid Crystal Polymer (LCP), Halogen-Free
  • Housing Color: Gray
  • Actuator Material: Liquid Crystal Polymer (LCP), Halogen-Free
  • Actuator Color: Black
