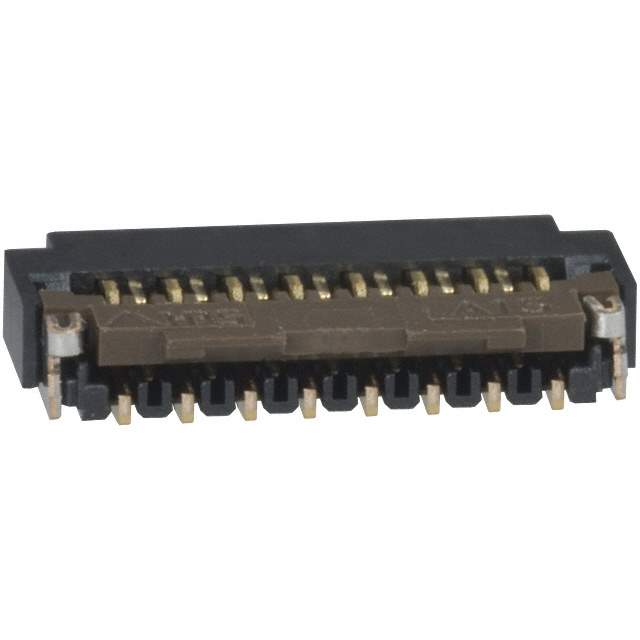

FH26W-15S-0.3SHW(60) Real Image
Same model may have multiple batches, images only for reference.

FH26W-15S-0.3SHW(60)

Part No FH26W-15S-0.3SHW(60)
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FPC/FFC 15POS .3MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Hirose Electric Co Ltd
Packaging Reel
Flat Flex Type FPC
Mounting Style Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 15
Pitch 0.012" (0.30mm)
Termination Solder
FFC, FCB Thickness 0.20mm
Height Above Board 0.039" (1.00mm)
Locking Feature Flip Lock
Cable End Type Tapered
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP)
Actuator Material Polyamide (PA), Nylon
Features Zero Insertion Force (ZIF)
Voltage Rating 30V
Temperature Range - Operating -55°C ~ 85°C
Material Flammability Rating UL94 HB
Current Rating (Amps) 0.2A
Housing Color Black
Actuator Color Brown
Mating Cycles 10
Manufacturer Pack Quantity 5,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 803109-FH26W-15S-0.3SHW(60)
Ultra Librarian 3D Model Ultra Librarian FH26W-15S-0.3SHW(60) CAD Model

Description

The Hirose Electric Co Ltd FH26W-15S-0.3SHW(60) is a surface mount, right angle connector with zero insertion force (ZIF) feature.

  • Pitch: 0.012 inches (0.30mm)
  • Height Above Board: 0.039 inches (1.00mm)
  • Housing Material: liquid crystal polymer (LCP)
  • Contact Material: phosphor bronze
  • Contact Finish: gold
  • Voltage Rating: 30V
  • Current Rating: 0.2A
  • Locking Feature: flip lock
  • Cable End Type: tapered
  • FFC, FCB Thickness: 0.20mm
  • Connector/Contact Type: contacts, bottom
  • Actuator Material: polyamide (PA), nylon
  • Actuator Color: brown
  • Operating Temperature Range: -55°C to 85°C
  • Packaging: reel
  • Manufacturer Pack Quantity: 5,000
