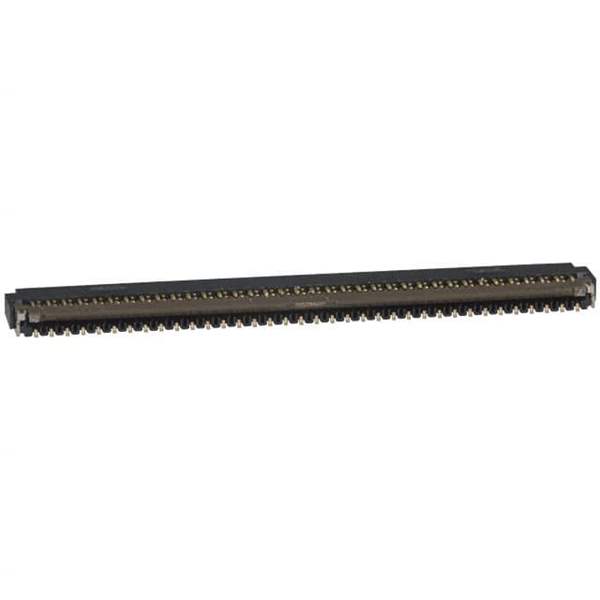

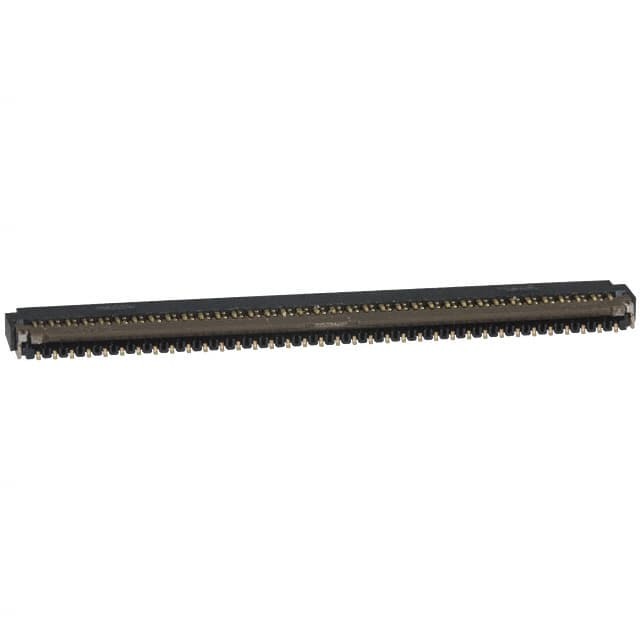

FH26-71S-0.3SHW(10)
Same model may have multiple batches, images only for reference.

FH26-71S-0.3SHW(10)

Part No FH26-71S-0.3SHW(10)
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FPC BOTTOM 71POS 0.3MM R/A / 71 Position FPC Connector Contacts, Bottom 0.012" (0.30mm) Surface Mount, Right Angle
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - FFC, FPC (Flat Flexible) Connectors - FFC, FPC (Flat Flexible) Connector Assemblies
Mfr Hirose Electric Co Ltd
Series FH26
Package Tape & Reel
Product Status Obsolete
Flat Flex Type FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 71
Pitch 0.012" (0.30mm)
Termination Solder
FFC, FCB Thickness 0.20mm
Height Above Board 0.039" (1.00mm)
Locking Feature Flip Lock
Cable End Type Tapered
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP)
Actuator Material Polyamide (PA), Nylon
Features Zero Insertion Force (ZIF)
Voltage Rating 30V
Temperature Range - Operating -55°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.2A
Housing Color Black
Actuator Color Brown
Mating Cycles 10
Standard Package 5,000 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Win Source Part Number 871866-FH26-71S-0.3SHW(10)
Ultra Librarian 3D Model Ultra Librarian FH26-71S-0.3SHW(10) CAD Model

Description

The FH26-71S-0.3SHW(10) is a Flat Flexible Connector Assembly designed for use in electronic devices from Hirose Electric Co Ltd.

  • Series: FH26
  • Positions: 71
  • Pitch: 0.012 inches (0.30mm)
  • Feature: Zero insertion force (ZIF)
  • Termination: Solder-based
  • Contact Finish: Gold
  • Mounting: Surface Mount, Right-Angle
  • Voltage Rating: 30V
  • Current Rating: 0.2A
  • Housing Material: Liquid Crystal Polymer (LCP)
  • Status: Obsolete
