Same model may have multiple batches, images only for reference.

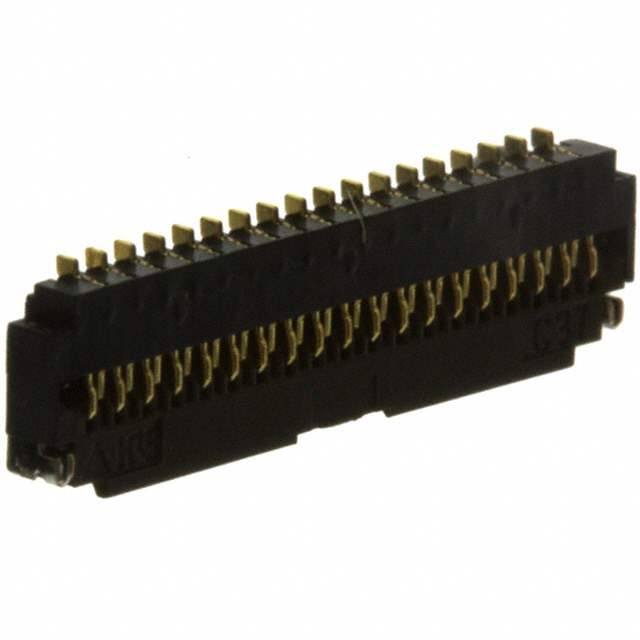

FH26-37S-0.3SHW(99) Real Image
Same model may have multiple batches, images only for reference.

FH26-37S-0.3SHW(99)

Part No FH26-37S-0.3SHW(99)
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FPC BOTTOM 37POS 0.30MM R/A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Hirose Electric Co Ltd
Packaging Reel - TR
Status Active
Flat Flex Type FPC
Mounting Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 37
Pitch 0.012" (0.30mm)
Termination Solder
FFC, FCB Thickness 0.20mm
Height Above Board 0.039" (1.00mm)
Locking Feature Flip Lock
Cable End Type Tapered
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP)
Actuator Material Polyamide (PA), Nylon
Features Zero Insertion Force (ZIF)
Voltage Rating 30V
Temperature Range - Operating -55°C to 85°C
Material Flammability Rating UL94 V-0
Current Rating 0.2A
Housing Color Black
Actuator Color Brown
Mating Cycles 10
Win Source Part Number 204187-FH26-37S-0.3SHW(99)
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian FH26-37S-0.3SHW(99) CAD Model

Description

The FH26-37S-0.3SHW(99) is a bottom contact FFC/FPC connector manufactured by Hirose Electric Co Ltd.

  • Positions: 37
  • Pitch: 0.012" (0.30mm)
  • Packaging: Reel
  • Mounting: SMD (SMT) technology
  • Features: Zero insertion force (ZIF), Solder termination
  • Housing Material: Liquid crystal polymer (LCP)
  • Contact Finish: Gold
  • Operating Temperature Range: -55°C to 85°C
  • Supply and Demand: Limited
  • Popular Choice: High performance and ease of use
