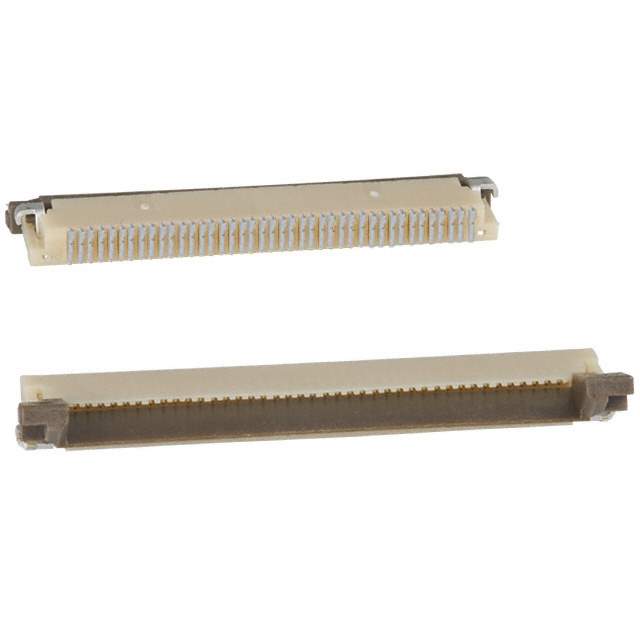

FH12A-40S-0.5SH Real Image
Same model may have multiple batches, images only for reference.

FH12A-40S-0.5SH

Part No FH12A-40S-0.5SH
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC TOP 40POS 0.50MM R/A / 0.5mm and 1mm Pitch Connectors For FPC/FFC
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Hirose Electric Co Ltd
Packaging Reel
Part Status Obsolete (End Of Life)
Flat Flex Type FFC, FPC
Mounting Style Surface Mount, Right Angle
Connector/Contact Type Contacts, Top
Number of Positions 40
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.079" (2.00mm)
Locking Feature Flip Lock
Cable End Type Straight
Contact Material Phosphor Bronze
Contact Finish Tin-Lead
Housing Material Polyamide (PA), Nylon
Actuator Material Polyphenylene Sulfide (PPS)
Features Zero Insertion Force (ZIF)
Voltage Rating 50V
Temperature Range - Operating -40°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Housing Color Beige
Actuator Color Brown
Mating Cycles 20
Manufacturer Pack Quantity 2,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 803865-FH12A-40S-0.5SH
Ultra Librarian 3D Model Ultra Librarian FH12A-40S-0.5SH CAD Model

Description

The Hirose Electric Co Ltd 803865-FH12A-40S-0.5SH connector features 40 contacts, a surface mount/right angle mounting style, and zero insertion force (ZIF).

  • Contacts: 40
  • Mounting Style: Surface Mount, Right Angle
  • Insertion Force: Zero Insertion Force (ZIF)
  • Contact Material: Phosphor Bronze
  • Voltage Rating: 50V
  • Height Above Board: 0.079" (2.00mm)
  • Flammability Rating: UL94 V-0
  • Pitch: 0.020" (0.50mm)
  • Locking Feature: Flip Lock
  • Cable End Type: Straight
  • Operating Temperature: -40°C to 85°C
