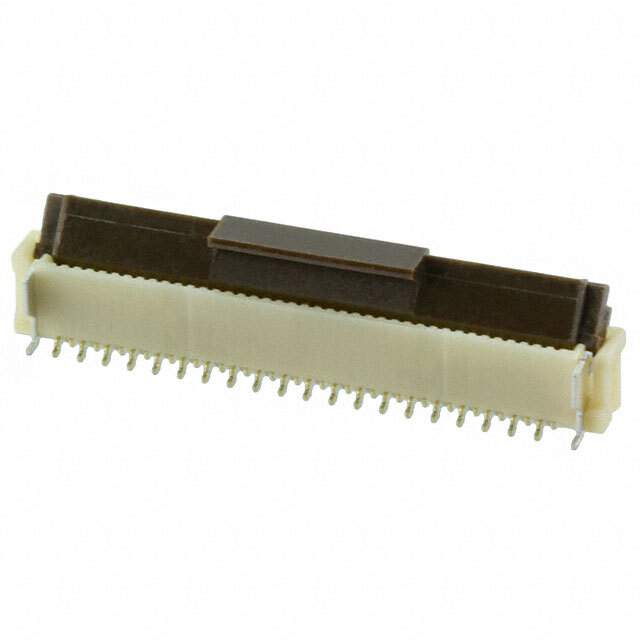

Same model may have multiple batches, images only for reference.

FH12-40S-0.5SVA(54)

Name: FH12-40S-0.5SVA(54)
Brand: Hirose Electric Co Ltd
SKU: 1333434
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	FH12-40S-0.5SVA(54)
Manufacturer	Hirose Electric Co Ltd
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	CONN FFC VERT 40POS 0.50MM SMD / 40 Position FFC, FPC Connector Contacts, Vertical - 1 Sided 0.020" (0.50mm) Surface Mount
Datasheet	FH12-40S-0.5SVA(54) Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors>FFC, FPC (Flat Flexible) Connector Assemblies
Manufacturer	Hirose Electric Co Ltd
Packaging	Reel - TR
Flat Flex Type	FFC, FPC
Mounting	Surface Mount
Connector/Contact Type	Contacts, Vertical - 1 Sided
Number of Positions	40
Pitch	0.020" (0.50mm)
Termination	Solder
FFC, FCB Thickness	0.30mm
Height Above Board	0.142" (3.60mm)
Locking Feature	Flip Lock
Cable End Type	Straight
Contact Material	Phosphor Bronze
Contact Finish	Gold
Housing Material	Polyamide (PA), Nylon
Actuator Material	Polyphenylene Sulfide (PPS)
Features	Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating	50V
Temperature Range - Operating	-40°C ~ 85°C
Material Flammability Rating	UL94 V-0
Current Rating (Amps)	0.5A
Base Product Number	FH12
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4051
Other Part Number	H125150TR,FH12-40S-0.5SVA(54)-ND,586-0804-5-54,H125150CT,H125150DKR
Standard Package	1,000
Win Source Part Number	1333434-FH12-40S-0.5SVA(54)
Ultra Librarian 3D Model	Ultra Librarian FH12-40S-0.5SVA(54) CAD Model

Alternative Products

Description

The FH12-40S-0.5SVA(54) from Hirose Electric Co Ltd is a FFC/FPC connector assembly with a pitch of 0.50mm and 40 positions.

Pitch: 0.50mm
Positions: 40
Connector Type: FFC/FPC
Features: Zero Insertion Force (ZIF) and Solder Retention
Voltage Rating: 50V
Current Rating: 0.5A
Contact Material: Phosphor Bronze
Contact Finish: Gold
Housing Material: Polyamide (PA)
Actuator Material: Polyphenylene Sulfide (PPS)
Locking Feature: Flip Lock
Cable End Type: Straight
RoHS Compliant: Yes
Temperature Range: -40°C to 85°C
