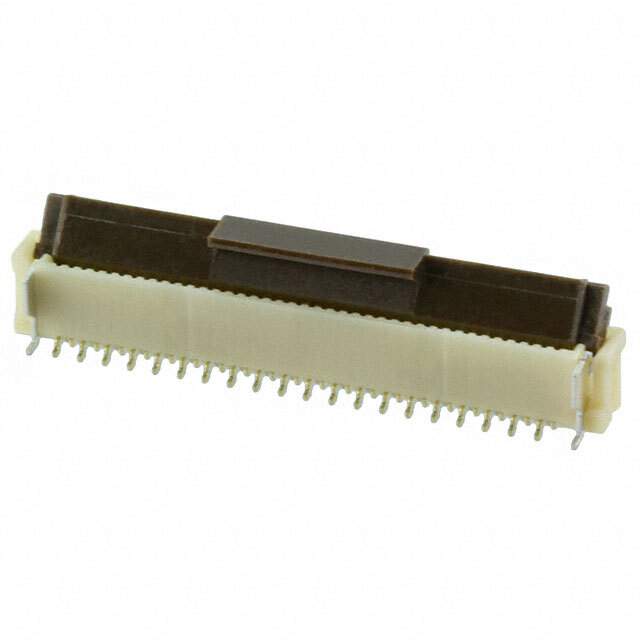

FH12-40S-0.5SH Real Image
Same model may have multiple batches, images only for reference.

FH12-40S-0.5SH

Part No FH12-40S-0.5SH
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description 0.5mm and 1mm Pitch Connectors For FPC/FFC | CONN FFC BOTTOM 40POS 0.50MM R/A
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Hirose Electric Co Ltd
Packaging Cut Tape (CT)
Status Obsolete
Flat Flex Type FFC, FPC
Mounting Style SMT, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 40
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.079" (2.00mm)
Locking Feature Flip Lock
Cable End Type Straight
Contact Material Phosphor Bronze
Contact Finish Tin-Lead
Dielectric Material Polyamide (PA), Nylon
Actuator Material Polyphenylene Sulfide (PPS)
Features Zero Insertion Force (ZIF)
Voltage Rating 50V
Temperature Range - Operating -40°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Housing Color Beige
Actuator Color Brown
Mating Cycles 20
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1174228-FH12-40S-0.5SH
Manufacturer Homepage www.hirose-connectors.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian FH12-40S-0.5SH CAD Model

Description

The FH12-40S-0.5SH is a 40-position FFC/FPC connector manufactured by Hirose Electric Co Ltd.

  • Pitch: 0.020" (0.50mm)
  • Mounting Style: Right-angle surface mount
  • Type: Zero insertion force (ZIF) connector
  • Locking Feature: Flip lock
  • Housing Color: Beige
  • Actuator Color: Brown
  • Connector/Contact Type: Contacts, bottom
  • FFC/FPC Thickness: 0.30mm
  • Manufacturer Pack Quantity: 1
  • Popularity: Medium
  • Flammability Rating: UL94 V-0
  • Temperature Range: -40°C to 85°C
