Same model may have multiple batches, images only for reference.

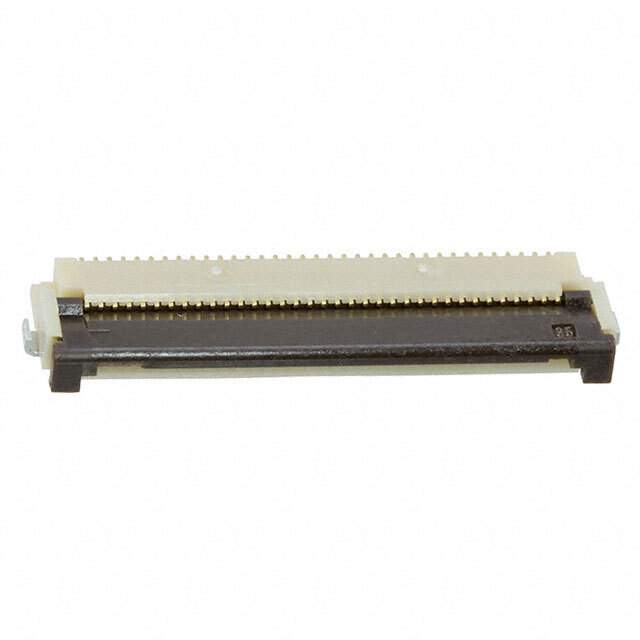

FH12-35S-0.5SH(55) Real Image
Same model may have multiple batches, images only for reference.

FH12-35S-0.5SH(55)

Part No FH12-35S-0.5SH(55)
Manufacturer Hirose Electric Co Ltd
Catalog Flat Flex Cables (FFC, FPC)
Description CONN FFC BOTTOM 35POS 0.50MM R/A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 25 Weeks
Features 35 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Manufacturer Hirose Electric Co Ltd
Series FH12
Package Reel - TR
Operating Temperature Range -40°C ~ 85°C
Mounting Surface Mount, Right Angle
Family Name FH12
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number *FH12-35S-0.5SH(55), -FH12-35S-0.5SH(55), *FH12-35S-0.5SH(55)-ND, H124616DKR, -FH12-35S-0.5SH(55)-ND, -FH12-35S-0.5SH(55)CT, H124616TR, -FH12-35S-0.5SH(55)DKR, *FH12-35S-0.5SH(55)CT-ND, *FH12-35S-0.5SH(55)DKR-ND, H124616CT, 586-0740-4-55, FH12-35S-0.5SH(55)-ND
Quantity per package 2000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 871795-FH12-35S-0.5SH(55)
Ultra Librarian 3D Model Ultra Librarian FH12-35S-0.5SH(55) CAD Model

Description

The Hirose Electric Co Ltd FH12-35S-0.5SH(55) is a 35 position FFC, FPC connector with bottom 0.020" (0.50mm) surface mount and right angle features.

  • Popularity: medium
  • Mounting: surface mounted
  • Family Name: FH12
  • Connector Contacts: FFC and FPC
  • Package: reel - TR
  • Series: FH12
  • Suitable for: use in connectors categories
  • Operating Temperature Range: -40°C ~ 85°C
  • Estimated Production Lead Time: 25 weeks
  • MSL Level: 1 (Unlimited)
  • HTSUS Code: 8536.69.4040
