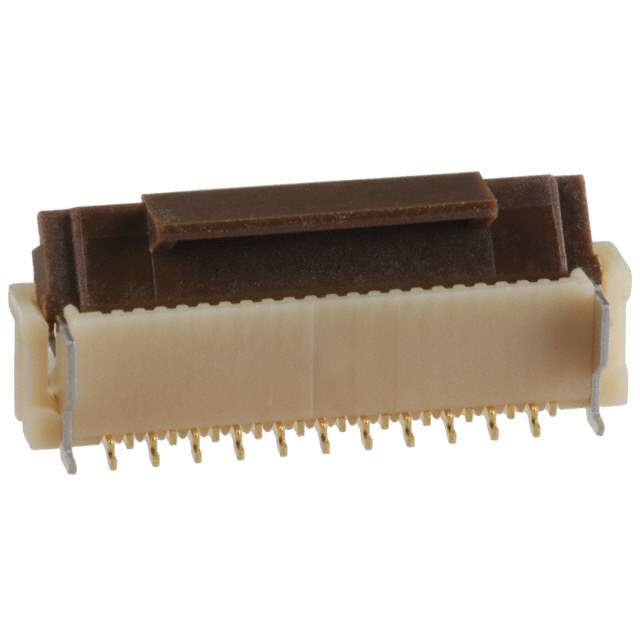

FH12-22S-0.5SV(55) Real Image1 FH12-22S-0.5SV(55) Real Image2
Same model may have multiple batches, images only for reference.
FH12-22S-0.5SV(55) Real Image1 FH12-22S-0.5SV(55) Real Image2
FH12-22S-0.5SV(55) Real Image1 FH12-22S-0.5SV(55) Real Image2
Same model may have multiple batches, images only for reference.

FH12-22S-0.5SV(55)

Part No FH12-22S-0.5SV(55)
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC VERT 22POS 0.5MM SMD / 22 Position FFC, FPC Connector Contacts, Vertical - 1 Sided 0.020" (0.50mm) Surface Mount
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors>FFC, FPC (Flat Flexible) Connector Assemblies
Mfr Hirose Electric Co Ltd
Series FH12
Package Tape & Reel
Product Status Obsolete
Flat Flex Type FFC, FPC
Mounting Type Surface Mount
Connector/Contact Type Contacts, Vertical - 1 Sided
Number of Positions 22
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.142" (3.60mm)
Locking Feature Flip Lock
Cable End Type Straight
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Polyamide (PA), Nylon
Actuator Material Polyphenylene Sulfide (PPS)
Features Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating 50V
Temperature Range - Operating -40°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Contact Finish Thickness -
Housing Color Beige
Actuator Color Brown
Mating Cycles 20
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Standard Package 1,000 pcs
Win Source Part Number 1382080-FH12-22S-0.5SV(55)
Ultra Librarian 3D Model Ultra Librarian FH12-22S-0.5SV(55) CAD Model

Description

The FH12-22S-0.5SV(55) is a FFC, FPC connector assembly in the FH12 series from Hirose Electric Co Ltd.

  • Positions: 22
  • Pitch: 0.020" (0.50mm)
  • Features: Solder retention and zero insertion force (ZIF)
  • Mounting Type: Surface Mount
  • Package: Tape and Reel
