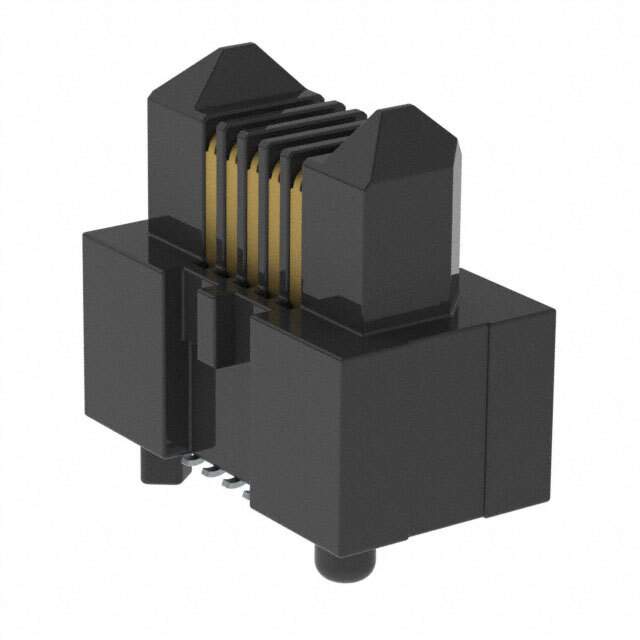

ER8-10P-0.8SV-5H Real Image
Same model may have multiple batches, images only for reference.

ER8-10P-0.8SV-5H

Part No ER8-10P-0.8SV-5H
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HDR 10POS SMD GOLD / 10 Position Connector Header, Center Strip Contacts Surface Mount Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Hirose Electric Co Ltd
Series ER8
Package Tape & Reel
Connector Type Header, Center Strip Contacts
Number of Positions 10
Pitch 0.031" (0.80mm)
Number of Rows 2
Mounting Type Surface Mount
Features Board Guide
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Mated Stacking Heights 10mm, 12mm
Height Above Board 0.351" (8.91mm)
Base Product Number ER8-10P
Standard Package 325
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1349175-ER8-10P-0.8SV-5H
Ultra Librarian 3D Model Ultra Librarian ER8-10P-0.8SV-5H CAD Model

Description

The ER8-10P-0.8SV-5H from Hirose Electric Co Ltd is a 10-position header connector with a pitch of 0.80mm.

  • Pitch: 0.80mm
  • Height Above Board: 8.91mm
  • Application: Board-to-board
  • Current Rating: Unspecified
  • Voltage Rating: Unspecified
  • Contact Material: Phosphor bronze
  • Contact Finish: Gold
  • Board Guide: Yes
  • Mounting: Surface mount
  • RoHS Compliant: Yes
  • Temperature Range: Unspecified
