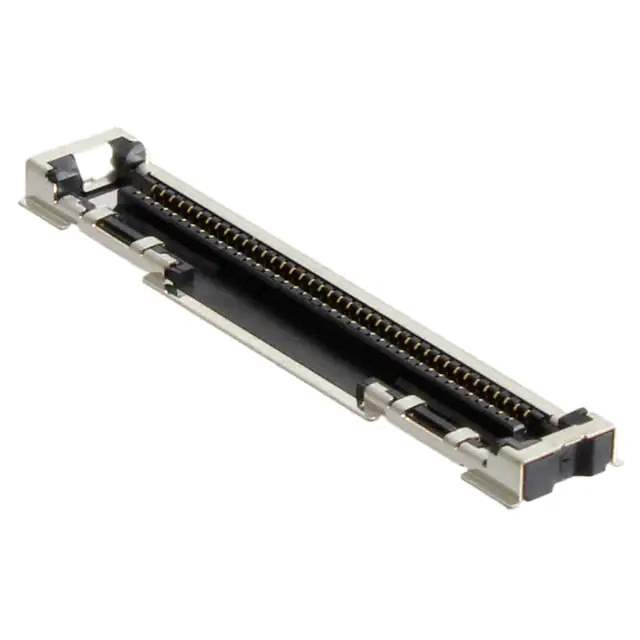

Same model may have multiple batches, images only for reference.

DF80-40S-0.5V(51)

Name: DF80-40S-0.5V(51)
Brand: Hirose Electric Co Ltd
SKU: 848693
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	DF80-40S-0.5V(51)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN RCPT 40POS 0.02 GOLD SMD
Datasheet	DF80-40S-0.5V(51) Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Hirose Electric Co Ltd
Series	DF80
Package	Tape & Reel
Product Status	Active
Connector Type	Receptacle
Contact Type	Center Strip Contact
Style	Board to Cable/Wire
Number of Positions	40
Number of Positions Loaded	All
Pitch - Mating	0.020" (0.50mm)
Number of Rows	1
Mounting Type	Surface Mount
Termination	Solder
Fastening Type	Friction Lock
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.97µin (0.050µm)
Insulation Color	Black
Insulation Height	0.065" (1.65mm)
Temperature Range - Operating	-35°C ~ 85°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Gold
Features	Solder Retention
Current Rating (Amps)	0.5A
Voltage Rating	50V
Insulation Material	Liquid Crystal Polymer (LCP), Halogen Free
Contact Material	Phosphor Bronze
Contact Finish Thickness - Post	1.97µin (0.050µm)
Base Product Number	DF80
Standard Package	5,000 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	848693-DF80-40S-0.5V(51)
Ultra Librarian 3D Model	Ultra Librarian DF80-40S-0.5V(51) CAD Model

Alternative Products

Description

The DF80-40S-0.5V(51) is a female socket connector from Hirose Electric Co Ltd.

Series: DF80
Positions: 40
Feature: Solder Retention
Application: Board to Cable/Wire
Pitch: 0.020" (0.50mm)
Voltage Rating: 50V
Contact Material: Phosphor Bronze
Contact Finish: Gold
Mounting Type: Surface Mount
Insulation Color: Black
Package: Tape & Reel
Standard Quantity: 5,000 pcs
