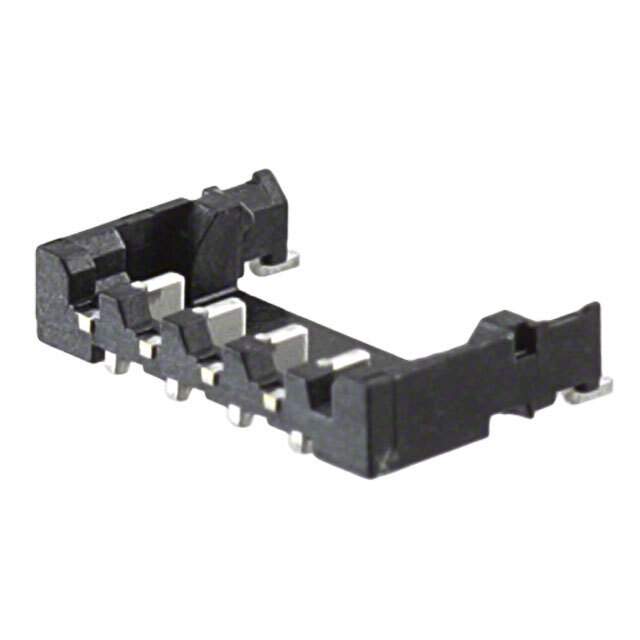

DF57H-4P-1.2V(21) Real Image
Same model may have multiple batches, images only for reference.

DF57H-4P-1.2V(21)

Part No DF57H-4P-1.2V(21)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HEADER SMD 4POS 1.2MM / Connector Header Surface Mount 4 position 0.047" (1.20mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer Hirose Electric Co Ltd
Packaging Reel - TR
Connector Type Header
Contact Type Male Blade
Pitch - Mating 0.047" (1.20mm)
Number of Positions 4
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Unshrouded
Mounting Surface Mount
Termination Solder
Fastening Type Swing Lock
Insulation Height 0.055" (1.40mm)
Contact Shape Rectangular
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 39.4µin (1.00µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Liquid Crystal Polymer (LCP)
Features Solder Retention
Temperature Range - Operating -35°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Base Product Number DF57
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number DF57H4P12V21,H12105DKR,666-0106-2-21,H12105TR,H12105CT
Standard Package 5,000
Win Source Part Number 1332946-DF57H-4P-1.2V(21)
Ultra Librarian 3D Model Ultra Librarian DF57H-4P-1.2V(21) CAD Model

Description

The Hirose Electric Co Ltd 1146403 is a male blade header connector that is designed for use in various applications.

  • Win Source Part Number: 1332946-DF57H-4P-1.2V(21)
  • Component Family: Rectangular Connectors
  • Solder Retention: Yes
  • Style: Board to Cable/Wire
  • Supply and Demand Status: Balanced
  • Standard Package: 5,000
