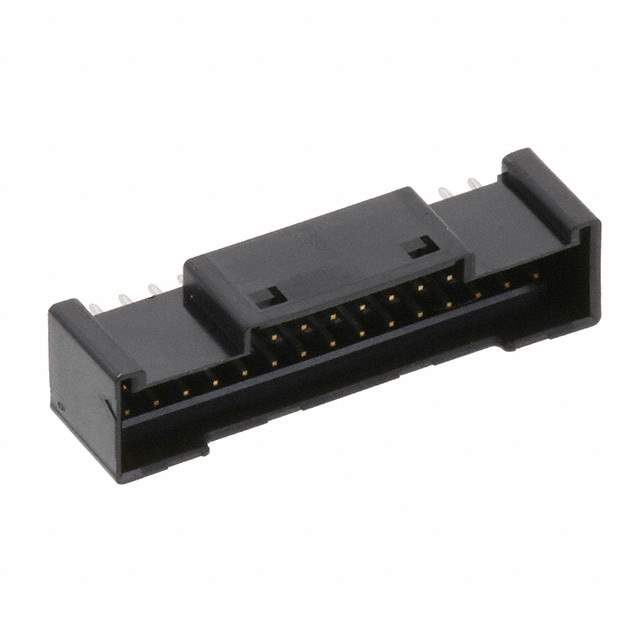

DF51K-30DP-2DSA(800) Real Image
Same model may have multiple batches, images only for reference.

DF51K-30DP-2DSA(800)

Part No DF51K-30DP-2DSA(800)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HDR 2MM DUAL TIN PCB 30POS / Connector Header Through Hole 30 position 0.079" (2.00mm)
Datasheet
DF51K-30DP-2DSA(800) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer Hirose Electric Co Ltd
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 30
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Through Hole
Termination Solder
Fastening Type Latch Holder
Contact Length - Post 0.118" (3.00mm)
Insulation Height 0.331" (8.40mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 39.4µin (1.00µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 250VAC/DC
Contact Finish Thickness - Post 39.4µin (1.00µm)
Applications General Purpose, Industrial, Medical
Base Product Number DF51K
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 26-DF51K-30DP-2DSA(800)
Standard Package 100
Win Source Part Number 1333013-DF51K-30DP-2DSA(800)
Ultra Librarian 3D Model Ultra Librarian DF51K-30DP-2DSA(800) CAD Model

Description

The Hirose Electric Co Ltd electronic component with the Win Source Part Number 1333013-DF51K-30DP-2DSA(800) is a connector, interconnects component.

  • Connector Type: Header
  • Contact Type: Male Pin
  • Positions: 30
  • Family: Rectangular Connectors - Headers, Male Pins
  • Voltage Rating: 250VAC/DC
  • RoHS Compliant: Yes
  • Ingress Protection: -
