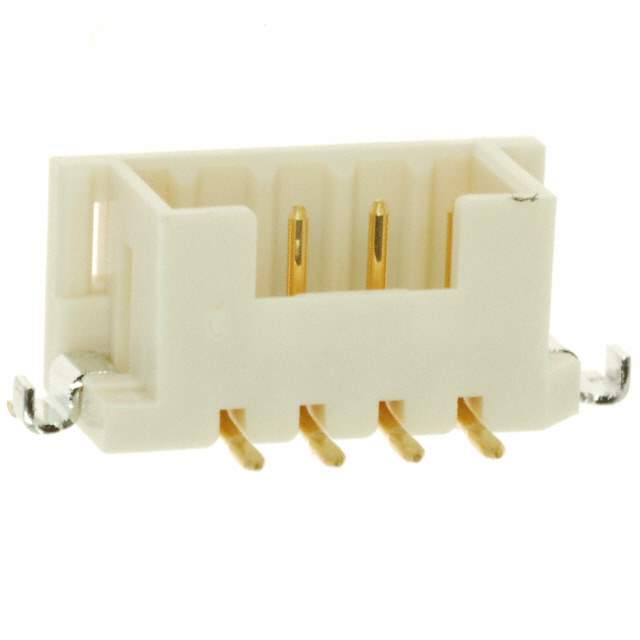

Same model may have multiple batches, images only for reference.

DF3Z-4P-2V(50)

Get a Quote

Part No	DF3Z-4P-2V(50)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 4POS 2MM / Connector Header Surface Mount 4 position 0.079" (2.00mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Hirose Electric Co Ltd
Series	DF3
Package	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	4
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Mounting Type	Surface Mount
Termination	Solder
Fastening Type	Push-Pull
Insulation Height	0.232" (5.90mm)
Contact Shape	Circular
Contact Finish - Mating	Gold
Contact Material	Brass
Insulation Material	Polyamide (PA) , Nylon
Features	Board Guide, Solder Retention
Temperature Range - Operating	-55°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Beige
Current Rating (Amps)	3A
Mated Stacking Heights	7.7mm, 8.4mm
Standard Package	30
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1339755-DF3Z-4P-2V(50)
Ultra Librarian 3D Model	Ultra Librarian DF3Z-4P-2V(50) CAD Model

Alternative Products

Description

The DF3 series connector from Hirose Electric Co Ltd is a 4-position header connector with a pitch of 0.079" (2.00mm).

Current Rating: 3A
Mounting: Surface Mount
Contact Material: Brass
Contact Finish: Gold
Material Flammability Rating: UL94 V-0
Insulation Material: Polyamide (PA), Nylon
Height Above Board: 0.232" (5.90mm)
Fastening Type: Push-Pull
Standard Package: 30
Suitable For: Board to Board or Cable Style
