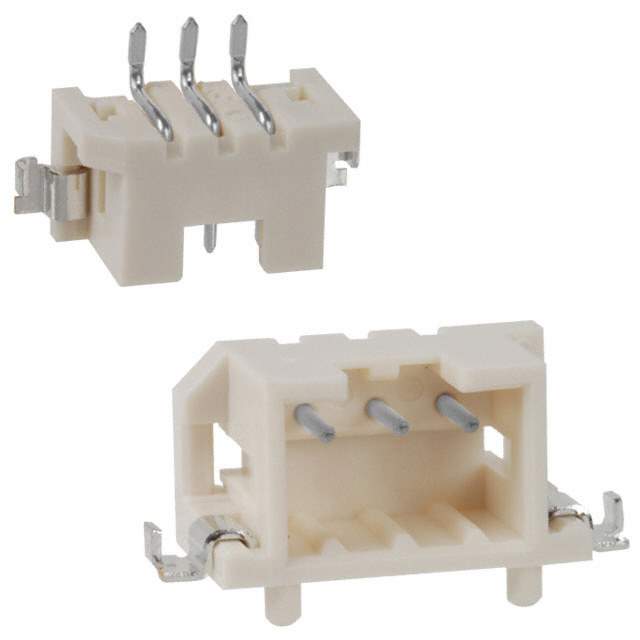

Same model may have multiple batches, images only for reference.

DF3Z-3P-2H(21)

Name: DF3Z-3P-2H(21)
Brand: Hirose Electric Co Ltd
SKU: 772592
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	DF3Z-3P-2H(21)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN RECEPT HOUSING 3POS 2MM / Conn Shrouded Header HDR 3 POS 2mm Solder RA SMD T/R
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Hirose Electric Co Ltd
Series	DF3
Packaging	Reel package
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Number of Positions	3
Number of Positions Loaded	All
Number of Rows	1
Mounting	Surface Mount, Right Angle
Termination	Solder
Fastening Type	Push-Pull
Insulation Height	0.220" (5.60mm)
Contact Shape	Circular
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polyamide (PA), Nylon
Features	Board Guide, Solder Retention
Operating Temperature Range	-55°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Beige
Current Rating	3A
Win Source Part Number	772592-DF3Z-3P-2H(21)
Popularity	Medium
Supply and Demand Status	Limited
Family Name	DF3Z
Introduction Date	January 21, 2003
ECCN	EAR99
Country of Origin	Japan
Estimated EOL Date	Obsolete / End of life
Ultra Librarian 3D Model	Ultra Librarian DF3Z-3P-2H(21) CAD Model

Alternative Products

Description

The Hirose Electric Co Ltd DF3Z-3P-2H(21) header connector is a single-row, 3-position component with male pin contacts.

Pitch: 2.00mm
Contact Finish: Tin
Mounting: Surface Mount, Right Angle
Insulation Material: Polyamide (PA), nylon
Series: DF3Z
Package: Reel
Features: Board guide, Solder retention
Application: Board to board or cable
