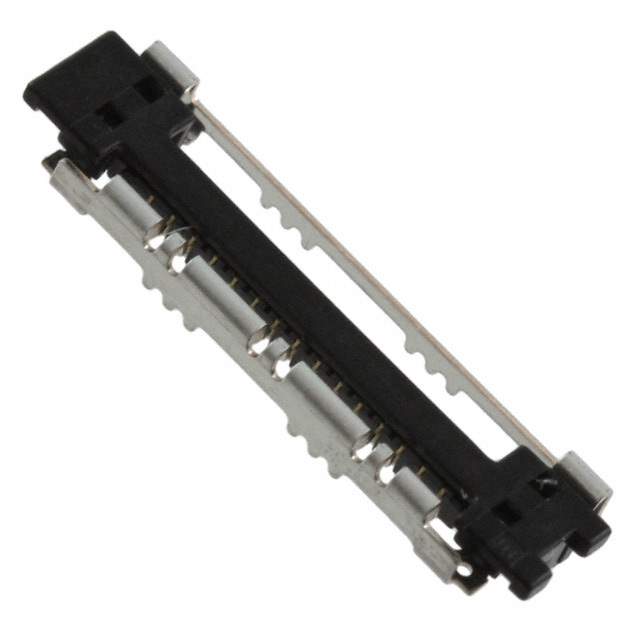

DF38A-30S-0.3V(51)

Part No DF38A-30S-0.3V(51)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN RCPT 0.3MM 30POS SMD
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Hirose Electric Co Ltd
Packaging Reel - TR
Status Active
Connector Type Receptacle
Contact Type Center Strip Contact
Style Board to Cable/Wire
Number of Positions 30
Number of Positions Loaded All
Pitch - Mating 0.012" (0.30mm)
Number of Rows 1
Mounting SMD (SMT)
Termination Solder
Fastening Type Friction Lock
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 3.9μin (0.10μm)
Insulation Color Black
Insulation Height 0.059" (1.50mm)
Temperature Range - Operating -35°C to 85°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Gold
Features Pick and Place, Solder Retention
Current Rating Varies by Wire Gauge
Voltage Rating 30VAC
Insulation Material Liquid Crystal Polymer (LCP), Halogen Free
Contact Finish Thickness - Post 3.9μin (0.10μm)
Win Source Part Number 1032999-DF38A-30S-0.3V(51)
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 5k pcs
Ultra Librarian 3D Model Ultra Librarian DF38A-30S-0.3V(51) CAD Model

Description

DF38A-30S-0.3V(51) from Hirose Electric Co Ltd is a fine-pitch rectangular receptacle connector designed for compact board-to-cable or wire interconnect applications where space savings and assembly reliability matter. With a 30-position, single-row, 0.30 mm pitch format, SMT mounting, friction lock retention, and pick-and-place support, it fits high-density portable electronics, compact industrial modules, consumer devices, and other miniaturized assemblies. The LCP halogen-free housing, UL94 V-0 flammability rating, and operating range of -35°C to 85°C make it suitable for controlled commercial and light industrial environments. This part is listed as Active in the provided specifications, which is positive for ongoing design use, although lifecycle verification should still be confirmed through the manufacturer or latest authorized channel data. RoHS compliance information is not explicitly provided in the supplied specifications, so engineers should treat compliance status as information not available pending official datasheet, manufacturer declaration, or distributor compliance documentation.
