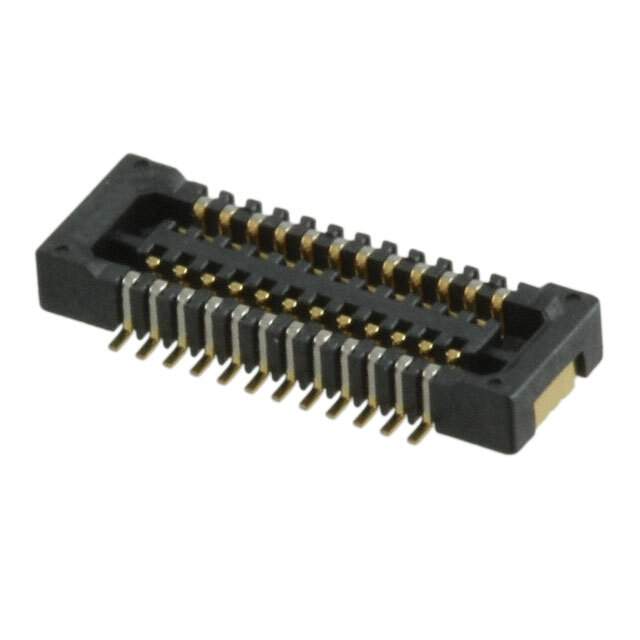

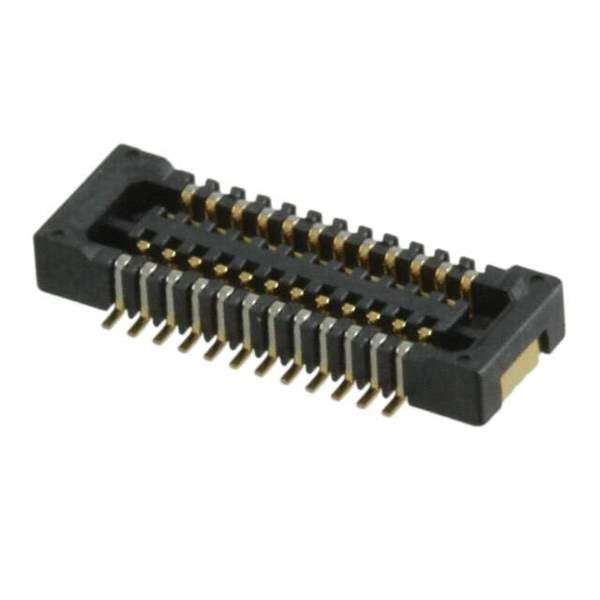

DF37NB-24DS-0.4V(75)

Part No DF37NB-24DS-0.4V(75)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN RCPT 24POS 0.4MM SMD GOLD
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Hirose Electric Co Ltd
Packaging Reel - TR
Status Active
Connector Type Receptacle, Center Strip Contacts
Number of Positions 24
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Contact Finish Thickness 3.9μin (0.10μm)
Mated Stacking Heights 0.98mm
Height Above Board 0.038" (0.97mm)
Win Source Part Number 1032987-DF37NB-24DS-0.4V(75)
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Quantity per package 8k pcs
Ultra Librarian 3D Model Ultra Librarian DF37NB-24DS-0.4V(75) CAD Model

Description

DF37NB-24DS-0.4V(75) from Hirose Electric Co Ltd is a fine-pitch rectangular receptacle connector designed for compact board-to-board interconnect applications where space, profile, and assembly reliability matter. With a 0.40 mm pitch, 24 positions, dual-row format, and SMT mounting, it is well suited for portable electronics, industrial modules, embedded control boards, display assemblies, and other high-density designs that require low stacking height. Gold contact finish and solder retention features support stable electrical contact and dependable SMT processing. Based on the provided status, this part is Active, which is generally favorable for ongoing production and maintenance planning, although engineers should still confirm long-term availability with current manufacturer and channel data. RoHS compliance information is not explicitly provided in the supplied specifications, so compliance status should be treated as information not available until verified through Hirose documentation or an authorized source. For procurement teams, balanced supply-demand and high market popularity suggest this is a practical, commonly used connector to monitor closely.
