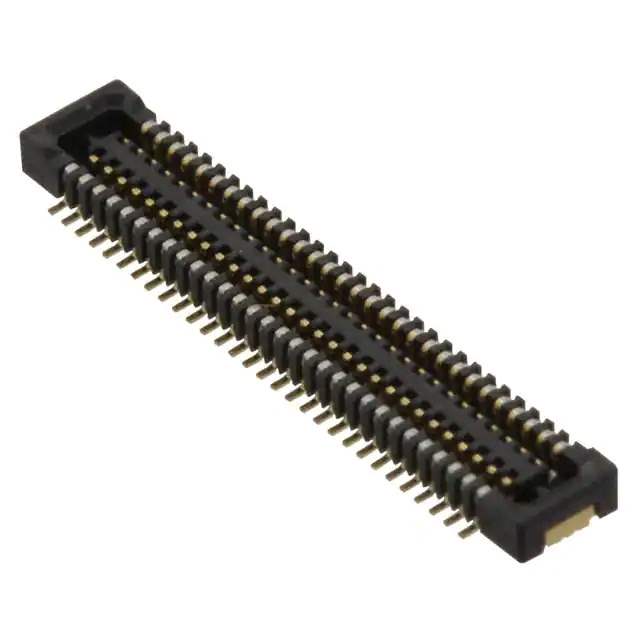

DF37C-60DP-0.4V(51)

Part No DF37C-60DP-0.4V(51)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HDR 60POS SMD GOLD / 60 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Hirose Electric Co Ltd
Series DF37
Package Tape & Reel
Product Status Active
Connector Type Header, Outer Shroud Contacts
Number of Positions 60
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting Type Surface Mount
Contact Finish Gold
Contact Finish Thickness 2.00µin (0.051µm)
Mated Stacking Heights 0.98mm
Height Above Board 0.030" (0.75mm)
Base Product Number DF37C
Standard Package 8,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 868537-DF37C-60DP-0.4V(51)
Ultra Librarian 3D Model Ultra Librarian DF37C-60DP-0.4V(51) CAD Model

Description

DF37C-60DP-0.4V(51) from Hirose Electric Co Ltd is a fine-pitch board-to-board rectangular connector designed for compact electronic assemblies that need reliable mezzanine interconnection in a very low-profile format. With 60 positions, dual-row layout, surface-mount termination, and 0.40 mm pitch, it is well suited for portable devices, industrial control modules, embedded computing boards, and other space-constrained designs where signal density and stack height matter. As part of the DF37 series, this connector is positioned for engineers seeking a proven interconnect option from a major connector manufacturer rather than a commodity substitute. The listed product status is Active, which supports consideration for ongoing production programs, although lifecycle planning should still be confirmed through current manufacturer channels. RoHS compliance information is not explicitly provided in the supplied specifications, so compliance status should be treated as information not available until verified through the official datasheet, manufacturer declaration, or authorized distributor documentation.
