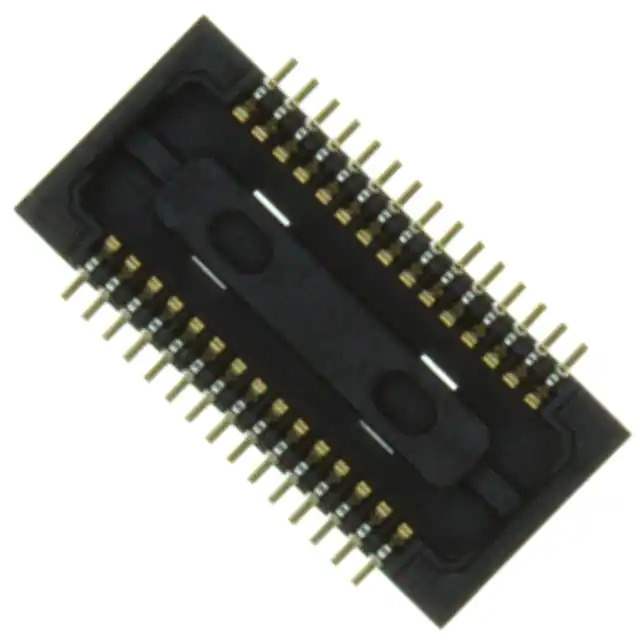

Same model may have multiple batches, images only for reference.

DF30FB-30DS-0.4V(82)

Name: DF30FB-30DS-0.4V(82)
Brand: Hirose Electric Co Ltd
SKU: 916995
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	DF30FB-30DS-0.4V(82)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN RCPT 30POS SMD GOLD / 30 Position Connector Receptacle, Outer Shroud Contacts Surface Mount Gold
Datasheet	DF30FB-30DS-0.4V(82) Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Hirose Electric Co Ltd
Series	DF30
Package	Tape & Reel
Product Status	Obsolete
Connector Type	Receptacle, Outer Shroud Contacts
Number of Positions	30
Pitch	0.016" (0.40mm)
Number of Rows	2
Mounting Type	Surface Mount
Features	Solder Retention
Contact Finish	Gold
Contact Finish Thickness	2.00µin (0.051µm)
Mated Stacking Heights	0.9mm
Height Above Board	0.035" (0.88mm)
Standard Package	1,000 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	916995-DF30FB-30DS-0.4V(82)
Ultra Librarian 3D Model	Ultra Librarian DF30FB-30DS-0.4V(82) CAD Model

Alternative Products

Description

The 916995-DF30FB-30DS-0.4V(82) is a rectangular connector array from Hirose Electric Co Ltd.

Series: DF30
Positions: 30
Pitch: 0.016" (0.40mm)
Application: Edge Type, Mezzanine (Board-to-Board)
Connector Type: Receptacle with Outer Shroud Contacts
Contact Finish: Gold with a thickness of 2.00µin (0.051µm)
Package: Tape & Reel
Height Above Board: 0.035" (0.88mm)
Mounting: Surface Mountable
Standard Package: 1,000 pcs
ECCN: EAR99
MSL Level: 1
HTSUS Code: 8536.69.4040
Status: Obsolete
