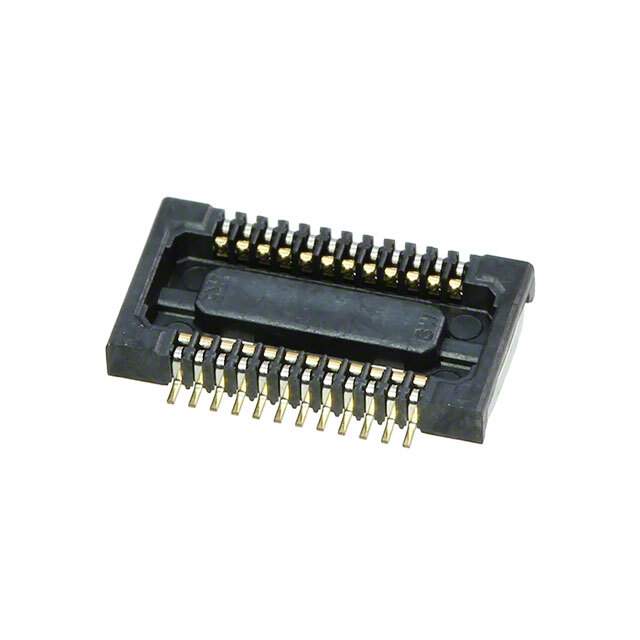

DF30FB-24DS-0.4V(82) Real Image
Same model may have multiple batches, images only for reference.

DF30FB-24DS-0.4V(82)

Part No DF30FB-24DS-0.4V(82)
Manufacturer Hirose Electric Co Ltd
Catalog Circular Connectors - Housings
Description CONN RCPT 24POS SMD GOLD / 24 Position Connector Receptacle, Outer Shroud Contacts Surface Mount Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Hirose Electric Co Ltd
Series DF30
Package Tape & Reel
Product Status Obsolete
Connector Type Receptacle, Outer Shroud Contacts
Number of Positions 24
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Contact Finish Thickness 2.00µin (0.051µm)
Mated Stacking Heights 0.9mm
Height Above Board 0.035" (0.88mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names DF30FB24DS04V82,*DF30FB-24DS-0.4V(82),H11593CT,H11593DKR,684-1100-3-82,H11593TR
Standard Package 1,000
Win Source Part Number 1031042-DF30FB-24DS-0.4V(82)
Ultra Librarian 3D Model Ultra Librarian DF30FB-24DS-0.4V(82) CAD Model

Description

The DF30FB-24DS-0.4V(82) is a rectangular connector array designed for board-to-board and board-to-cable connections.

  • Positions: 24
  • Pitch: 0.016 inches (0.40mm)
  • Feature: solder retention
  • Connector Type: receptacle with outer shroud contacts
  • Rows: two
  • Contact Finish: gold
  • Contact Finish Thickness: 2.00μin (0.051μm)
  • Package: tape and reel
  • Mated Stacking Height: 0.9mm
  • Height Above Board: 0.035 inches (0.88mm)
  • Mounting: surface mounted
  • Alternative Parts: DF40C-24DS-0.4V(51), DF30FC-24DS-0.4V(82), and DF30FC-24DP-0.4V(81)
  • Product Status: obsolete
  • Standard Package: 1,000
