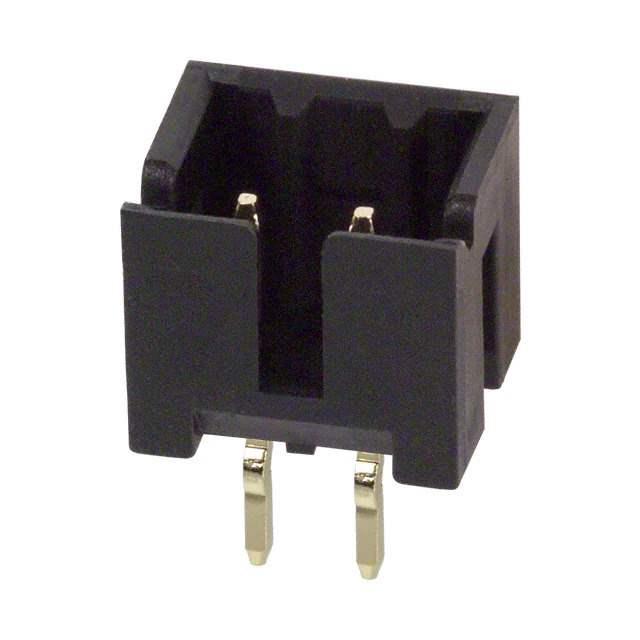

DF3-2P-2DSA(01) Real Image
Same model may have multiple batches, images only for reference.

DF3-2P-2DSA(01)

Part No DF3-2P-2DSA(01)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HEADER VERT 2POS 2MM / Connector Header Through Hole 2 position 0.079" (2.00mm)
Datasheet
DF3-2P-2DSA(01) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Hirose Electric Co Ltd
Series DF3
Package Bulk
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 2
Number of Rows 1
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Press-Fit, Solder
Fastening Type Push-Pull
Contact Length - Mating 0.122" (3.10mm)
Contact Length - Post 0.114" (2.90mm)
Overall Contact Length 0.299" (7.60mm)
Insulation Height 0.197" (5.00mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 8.00µin (0.203µm)
Contact Material Brass
Insulation Material Polyamide (PA), Nylon
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3A
Base Product Number DF3-2
Standard Package 100 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 850015-DF3-2P-2DSA(01)
Ultra Librarian 3D Model Ultra Librarian DF3-2P-2DSA(01) CAD Model

Description

The 850015-DF3-2P-2DSA(01) is a male pin header connector from Hirose Electric Co Ltd.

  • Series: DF3
  • Positions: 2
  • Pitch: 0.079" (2.00mm)
  • Connector Type: Header
  • Pin Gender: Male
  • Mounting Type: Through Hole
  • Contact Material: Brass
  • Contact Finish: Gold
  • Contact Finish Thickness: 8.00µin (0.203µm)
  • Package: Bulk (100 pieces)
  • Insulation Material: Polyamide (PA) and nylon
  • Flammability Rating: UL94 V-0
  • HTSUS Code: 8536.69.4040
  • Current Rating: 3A
