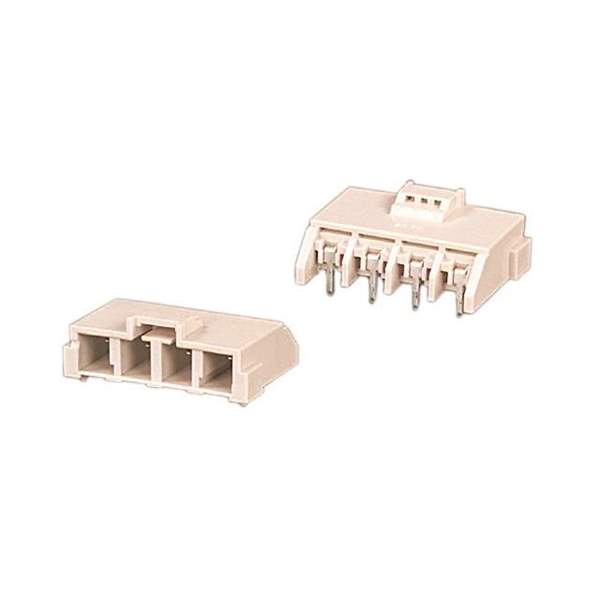

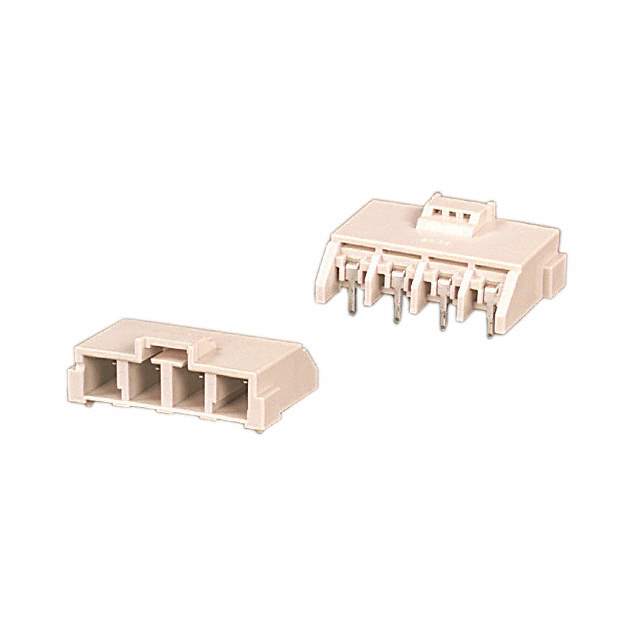

DF22-4P-7.92DS

Name: DF22-4P-7.92DS
Brand: Hirose Electric Co Ltd
SKU: 1337157
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	DF22-4P-7.92DS
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN HEADER R/A 4POS 7.92MM / Connector Header Through Hole, Right Angle 4 position 0.312" (7.92mm)
Datasheet	DF22-4P-7.92DS Datasheet
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Hirose Electric Co Ltd
Series	EnerBee™ DF22
Package	Bulk
Product Status	Obsolete
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.312" (7.92mm)
Number of Positions	4
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole, Right Angle
Termination	Solder
Fastening Type	Latch Holder
Contact Length - Mating	0.354" (9.00mm)
Contact Length - Post	0.146" (3.70mm)
Insulation Height	0.480" (12.20mm)
Contact Shape	Square
Contact Finish - Mating	Tin-Lead
Contact Material	Copper Alloy
Insulation Material	Polyamide (PA) , Nylon
Features	Board Guide
Temperature Range - Operating	-35°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Beige
Current Rating (Amps)	22A
Voltage Rating	1000V
Standard Package	100
RoHS Status	RoHS non-compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1337157-DF22-4P-7.92DS
Ultra Librarian 3D Model	Ultra Librarian DF22-4P-7.92DS CAD Model

Alternative Products

Description

The Hirose Electric Co Ltd EnerBee™ DF22 series rectangular header male pin connector is a 4-position, board guide header.

Contact Shape: Square
Mounting Type: Through-Hole, Right Angle
Wall Type: Shrouded-4 Wall
Pitch Mating: 0.312" (7.92mm)
Contact Finish Mating: Tin-Lead
Insulation Material: Polyamide (PA), Nylon
Insulation Color: Beige
RoHS: Non-Compliant
Status: Obsolete
