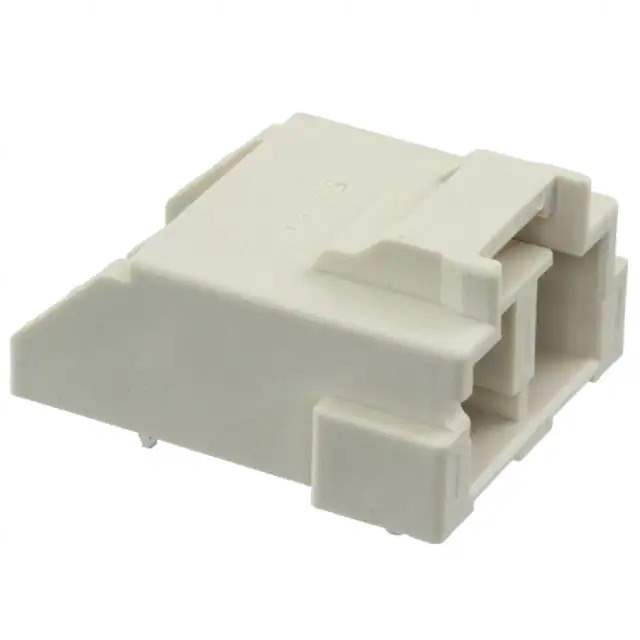

Same model may have multiple batches, images only for reference.

DF22-2P-7.92DS(35)

Name: DF22-2P-7.92DS(35)
Brand: Hirose Electric Co Ltd
SKU: 851665
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	DF22-2P-7.92DS(35)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN HEADER R/A 2POS 7.92MM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Hirose Electric Co Ltd
Series	EnerBee™ DF22
Package	Bulk
Product Status	Obsolete
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.312" (7.92mm)
Number of Positions	2
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole, Right Angle
Termination	Solder
Fastening Type	Latch Holder
Contact Length - Mating	0.354" (9.00mm)
Contact Length - Post	0.146" (3.70mm)
Insulation Height	0.480" (12.20mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Polyamide (PA), Nylon
Features	Board Guide
Temperature Range - Operating	-35°C ~ 85°C
Material Flammability Rating	UL94 V-0
Current Rating (Amps)	25A
Voltage Rating	1000V
Standard Package	100 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	851665-DF22-2P-7.92DS(35)
Ultra Librarian 3D Model	Ultra Librarian DF22-2P-7.92DS(35) CAD Model

Alternative Products

Description

The 851665-DF22-2P-7.92DS(35) is a male pin header connector from the EnerBee™ DF22 series by Hirose Electric Co Ltd.

Product Name: 851665-DF22-2P-7.92DS(35)
Series: EnerBee™ DF22
Type: Male Pin Header Connector
Application: Rectangular Connector
Termination: Solder
Fastening Type: Latch Holder
Voltage Rating: 1000V
Standard Package: 100 pieces
Contact Material: Copper Alloy
Flammability Rating: UL94 V-0
Connection Type: Board-to-Cable/Wire
Pitch: 0.312" (7.92mm)
Operating Temperature: -35°C to 85°C
Product Status: Obsolete
Manufacturer: Hirose Electric Co Ltd
