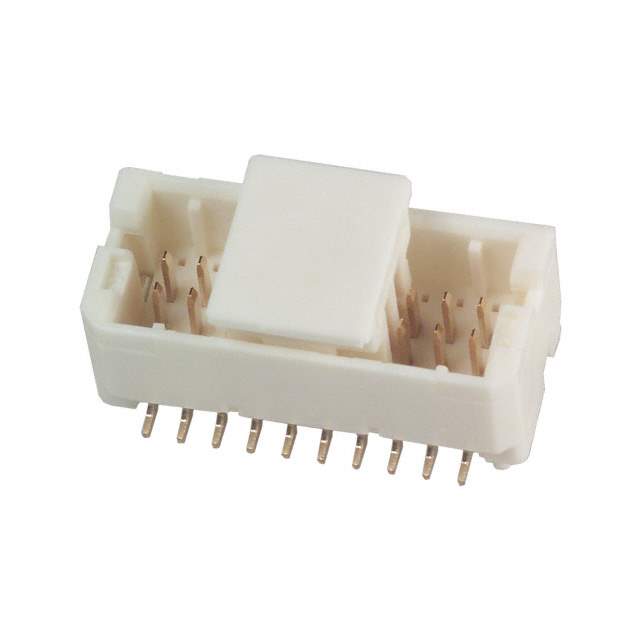

The DF20G-20DP-1V(56) is a 20-position double-row crimp connector manufactured by Hirose Electric Co Ltd. This is part of the DF20 series known for its robust design and secure locking mechanism, making it suitable for demanding applications requiring reliable connections. The 'G' likely denotes a specific material or feature enhancement. It has 1mm pitch between contacts and a voltage rating of 125V AC/DC. It is often used for wire-to-board connections.

Applications

• Robotics: Used for connecting sensors, actuators, and control systems in robots.
• Industrial Equipment: Employed in manufacturing machinery, control panels, and automation systems.
• Medical Devices: Found in diagnostic and therapeutic equipment where reliable connections are critical.
• Automotive: Utilized in automotive electronics for connecting various modules and sensors.
• Aerospace: Used in aerospace applications where high reliability and vibration resistance are required.

Features

• Secure Locking Mechanism: Prevents accidental disconnection, ensuring stable electrical connections in demanding environments.
• Double-Row Configuration: Provides a high density of connections in a compact footprint, maximizing board space utilization.
• Crimp Termination: Offers a robust and reliable connection between the wire and the connector.
• Polarization Feature: Prevents mismating, ensuring correct insertion and preventing damage to the connector and connected devices.
• High Current Capacity: Capable of handling relatively high current loads for its size.

Benefits

• Reliable Connection: The secure locking mechanism ensures a stable and dependable electrical connection, reducing the risk of signal interruption.
• Space Saving: Its compact size allows for efficient use of board space, making it ideal for miniaturized electronic devices.
• Easy Assembly: Designed for easy and quick assembly, reducing manufacturing time and costs.
• Prevents Mismating: The polarization feature eliminates the risk of incorrect insertion, protecting the connector and connected devices from damage.
• Robust Design: The DF20 series is known for its durability and ability to withstand harsh environments.

Additional Details

The DF20G-20DP-1V(56) connector features a current rating of 2A per contact. Its operating temperature range is typically from -55°C to +105°C. The housing material is usually made of a high-performance plastic, and the contacts are made of copper alloy with tin plating or gold plating for optimal conductivity and corrosion resistance. It is designed for crimp termination, ensuring a gas-tight and reliable connection. The (56) may refer to a specific manufacturing date code or packaging information.
