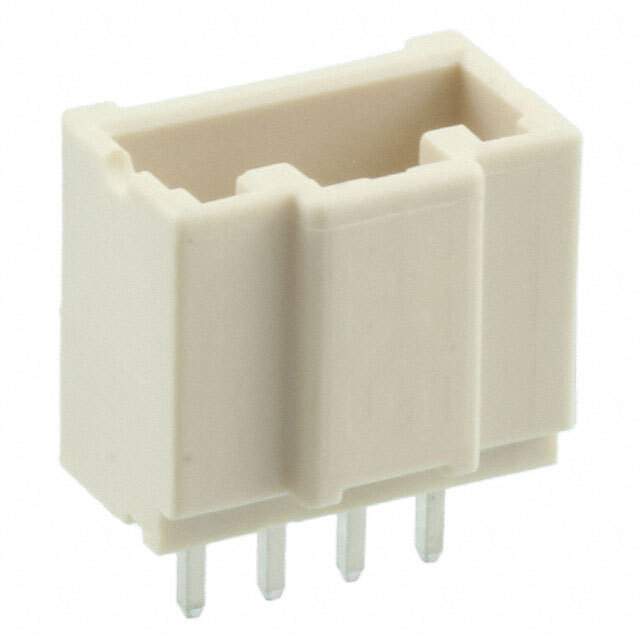

DF1EC-4P-2.5DSA(35) Real Image
Same model may have multiple batches, images only for reference.

DF1EC-4P-2.5DSA(35)

Part No DF1EC-4P-2.5DSA(35)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HEADER VERT 4POS 2.5MM / Connector Header Through Hole 4 position 0.098" (2.50mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Hirose Electric Co Ltd
Series DF1E
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.098" (2.50mm)
Number of Positions 4
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Latch Holder
Contact Length - Mating 0.177" (4.50mm)
Contact Length - Post 0.142" (3.60mm)
Insulation Height 0.425" (10.80mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 39.4µin (1.00µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA) , Nylon
Temperature Range - Operating -35°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 3A
Mated Stacking Heights 14.3mm, 15.8mm, 19.8mm
Contact Finish Thickness - Post 39.4µin (1.00µm)
Base Product Number DF1E
Standard Package 100
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1337730-DF1EC-4P-2.5DSA(35)
Ultra Librarian 3D Model Ultra Librarian DF1EC-4P-2.5DSA(35) CAD Model

Description

The Hirose Electric Co Ltd DF1EC-4P-2.5DSA(35) is a header connector type with a male pin contact. Hirose Electric Co Ltd is the manufacturer, and DF1EC-4P-2.5DSA(35) is the product.

  • Connector Style: Board to cable/wire
  • Pitch: 0.098" (2.50mm)
  • Contact Finish: Tin
  • Contact Finish Thickness: 39.4µin (1.00µm)
  • Insulation Material: Polyamide (PA), nylon
  • Family: DF1E
  • Category: Connectors and Interconnects
  • MSL Level: 1 (unlimited)
  • HTSUS: 8536.69.4040
