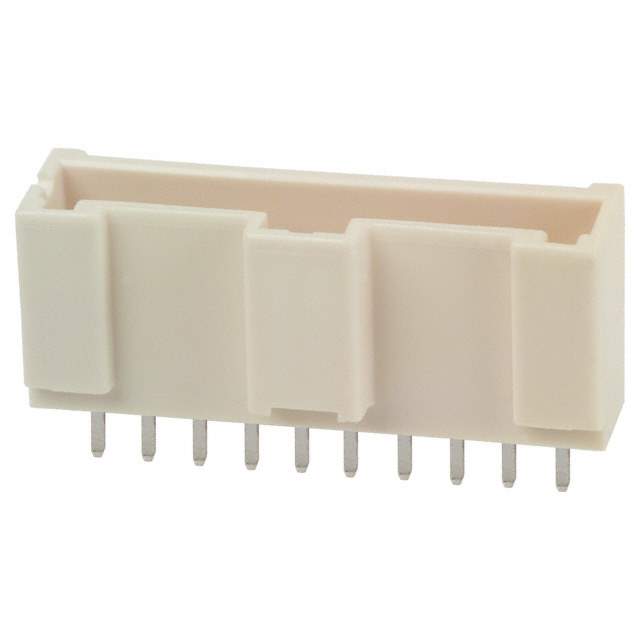

Same model may have multiple batches, images only for reference.

DF1EC-10P-2.5DSA

Get a Quote

Part No	DF1EC-10P-2.5DSA
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 10POS 2.5MM / Connector Header Through Hole 10 position 0.098" (2.50mm)
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Hirose Electric Co Ltd
Series	DF1E
Package	Bulk
Product Status	Obsolete
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.098" (2.50mm)
Number of Positions	10
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Latch Holder
Contact Length - Mating	0.177" (4.50mm)
Contact Length - Post	0.142" (3.60mm)
Insulation Height	0.425" (10.80mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	39.4µin (1.00µm)
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polyamide (PA) , Nylon
Temperature Range - Operating	-35°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	3A
Mated Stacking Heights	14.3mm, 15.8mm, 19.8mm
Standard Package	100
RoHS Status	RoHS non-compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1350386-DF1EC-10P-2.5DSA
Ultra Librarian 3D Model	Ultra Librarian DF1EC-10P-2.5DSA CAD Model

Alternative Products

Description

The Hirose Electric Co Ltd DF1E series male pin header connector is designed for board-to-cable/wire connections.

Type: Header, Male Pin
Number of Positions: 10
Fastening Type: Latch Holder
Contact Shape: Square
Contact Material: Brass
Contact Finish: Tin
Voltage Rating: 300VAC
Current Rating: 3A
Insulation Material: Polyamide (PA), Nylon
Flammability Rating: UL94 V-0
Mounting Type: Through Hole
Style: Shrouded 4-Wall
Row Spacing: 0.098" (2.50mm)
Operating Temperature: -35°C to 85°C
Package: Bulk
Quantity: 100
