Same model may have multiple batches, images only for reference.

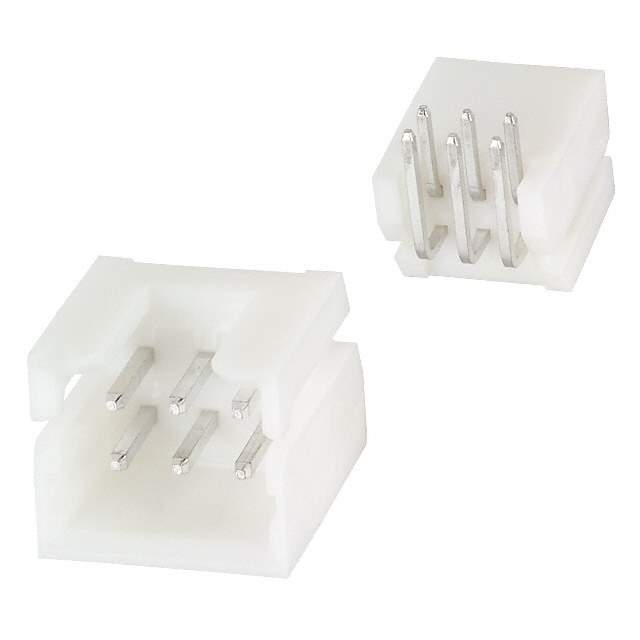

DF1BZ-6DP-2.5DS Real Image
Same model may have multiple batches, images only for reference.

DF1BZ-6DP-2.5DS

Part No DF1BZ-6DP-2.5DS
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HEADER R/A 6POS 2.5MM / Connector Header Through Hole, Right Angle 6 position 0.098" (2.50mm)
Datasheet
DF1BZ-6DP-2.5DS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer Hirose Electric Co Ltd
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.098" (2.50mm)
Number of Positions 6
Number of Rows 2
Row Spacing - Mating 0.098" (2.50mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Through Hole, Right Angle
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.177" (4.50mm)
Contact Length - Post 0.130" (3.30mm)
Insulation Height 0.339" (8.61mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 39.4µin (1.00µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA), Nylon
Features Keying Slot
Temperature Range - Operating -35°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color White
Voltage Rating 150V
Base Product Number DF1B
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number *DF1BZ-6DP-2.5DS,DF1BZ6DP25DS,H11026,541-2052-1-00
Standard Package 100
Win Source Part Number 1332967-DF1BZ-6DP-2.5DS
Ultra Librarian 3D Model Ultra Librarian DF1BZ-6DP-2.5DS CAD Model

Description

The Hirose Electric Co Ltd DF1BZ-6DP-2.5DS is a header connector that comes in bulk packaging.

  • Positions: Six
  • Style: Board to Cable/Wire
  • Pitch Mating: 0.098 inches (2.50mm)
  • Contact Finish-Mating: Tin
  • Termination: Solder
  • Mounting: Through-Hole and Right Angle
  • Insulation Material: Polyamide (PA), Nylon
  • Insulation Color: White
  • Contact Shape: Square
  • Operating Temperature Range: -35 degrees Celsius to 85 degrees Celsius
