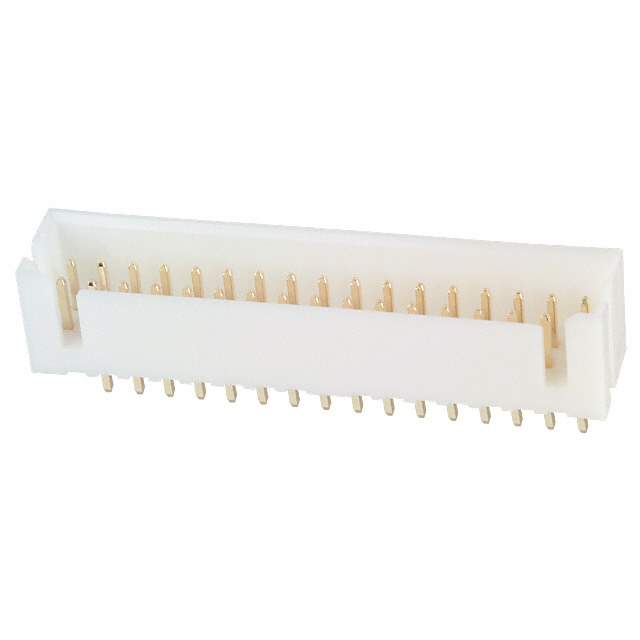

Same model may have multiple batches, images only for reference.

DF1B-34DP-2.5DSA(01)

Name: DF1B-34DP-2.5DSA(01)
Brand: Hirose Electric Co Ltd
SKU: 772574
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	DF1B-34DP-2.5DSA(01)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN HEADER 34POS 2.5MM STR GOLD / Conn Shrouded Header HDR 34 POS 2.5mm Solder ST Thru-Hole Bag
Datasheet	DF1B-34DP-2.5DSA(01) Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Hirose Electric Co Ltd
Series	DF1B
Packaging	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.098" (2.50mm)
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Number of Positions	34
Number of Positions Loaded	All
Number of Rows	2
Row Spacing - Mating	0.098" (2.50mm)
Mounting Style	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.177" (4.50mm)
Contact Length - Post	0.142" (3.60mm)
Overall Contact Length	0.417" (10.60mm)
Insulation Height	0.374" (9.50mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	8μin (0.20μm)
Contact Material	Brass
Insulation Material	Polyamide (PA), Nylon
Features	Keying Slot
Operating Temperature Range	-35°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	White
Voltage Rating	250V
Mated Stacking Heights	14mm
Win Source Part Number	772574-DF1B-34DP-2.5DSA(01)
Popularity	Medium
Supply and Demand Status	Limited
Quantity per package	100
Family Name	DF1B
Introduction Date	January 21, 1999
ECCN	EAR99
Country of Origin	Japan
Estimated EOL Date	2025
Ultra Librarian 3D Model	Ultra Librarian DF1B-34DP-2.5DSA(01) CAD Model

Alternative Products

Description

The Hirose Electric Co Ltd DF1B Header Connector is a high-quality and reliable connector that is suitable for a wide range of applications.

Popularity: Medium
Supply and Demand Status: Limited
Features: Keying slot
Fastening Type: Push-pull
Application: Board-to-cable/wire
Pitch-Mating: 0.098" (2.50mm)
Voltage Rating: 250V
Insulation Material: Polyamide (PA), Nylon
Contact Finish-Mating: Gold
Contact Finish Thickness-Mating: 8μin (0.20μm)
Package Quantity: 100
