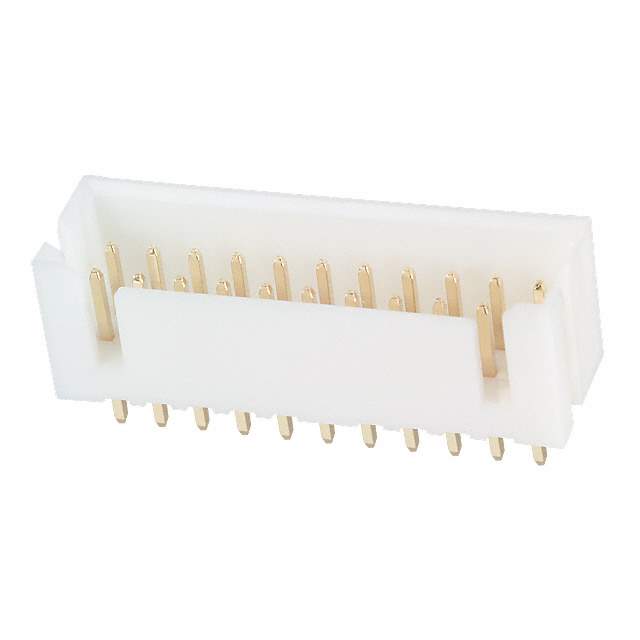

DF1B-22DP-2.5DSA(01) Real Image
Same model may have multiple batches, images only for reference.

DF1B-22DP-2.5DSA(01)

Part No DF1B-22DP-2.5DSA(01)
Manufacturer Hirose Electric Co Ltd
Catalog Circular Connectors - Housings
Description CONN HEADER VERT 22POS 2.5MM / Connector Header Through Hole 22 position 0.098" (2.50mm)
Datasheet
DF1B-22DP-2.5DSA(01) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Hirose Electric Co Ltd
Series DF1B
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.098" (2.50mm)
Number of Positions 22
Number of Rows 2
Row Spacing - Mating 0.098" (2.50mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.177" (4.50mm)
Contact Length - Post 0.142" (3.60mm)
Overall Contact Length 0.417" (10.60mm)
Insulation Height 0.374" (9.50mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 8.00µin (0.203µm)
Contact Material Brass
Insulation Material Polyamide (PA), Nylon
Features Keying Slot
Temperature Range - Operating -35°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color White
Voltage Rating 250V
Mated Stacking Heights 14mm
Base Product Number DF1B
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names *DF1B-22DP-2.5DSA(01),541-0622-7-01,*DF1B-22DP-2.5DSA(01)-ND,H3675,-DF1B-22DP-2.5DSA(01),*DF1B-22DP-2.5DSA(01
Standard Package 100
Win Source Part Number 1200996-DF1B-22DP-2.5DSA(01)
Ultra Librarian 3D Model Ultra Librarian DF1B-22DP-2.5DSA(01) CAD Model

Description

The DF1B-22DP-2.5DSA(01) is a rectangular connector header with male pins that belongs to the DF1B series.

  • Positions: 22
  • Positions Loaded: All
  • Keying Slot: Yes
  • Shrouded: 4 Walls
  • Pitch-Mating: 0.098" (2.50mm)
  • Contact Length-Mating: 0.177" (4.50mm)
  • Contact Finish-Mating: Gold
  • Thickness: 8.00µin (0.203µm)
  • Mounting Type: Through-Hole
  • Temperature Range: -35°C to 85°C
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • Current Rating (Amps): -
  • Package: Bulk
  • Manufacturer: Hirose Electric Co Ltd.
