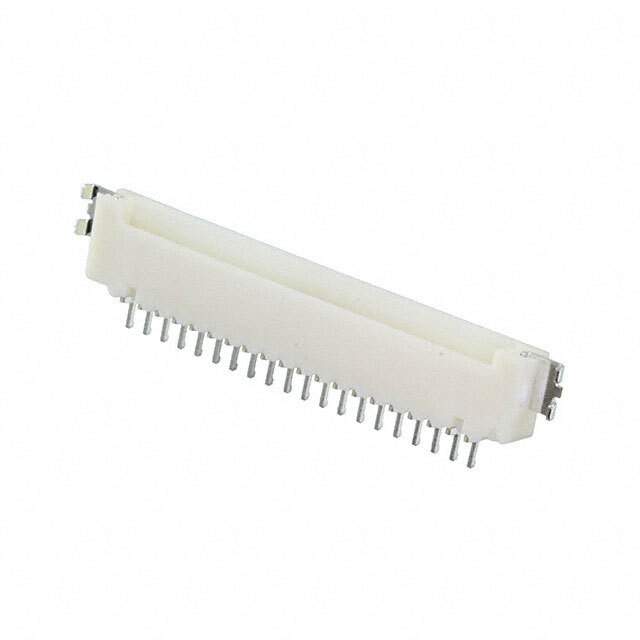

DF14H-20P-1.25H(56)

Name: DF14H-20P-1.25H(56)
Brand: Hirose Electric Co Ltd
SKU: 806928
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	DF14H-20P-1.25H(56)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN HEADER BRD EDGE 20P 1.25MM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Hirose Electric Co Ltd
Packaging	Reel
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.049"
Number of Positions	20
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Style	Board Edge, Cutout; Surface Mount, Right Angle
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.086" (2.20mm)
Insulation Height	0.094" (2.40mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	3.90μin (0.099μm)
Contact Material	Brass
Insulation Material	Polyamide (PA), Nylon
Features	Solder Retention
Temperature Range - Operating	-35°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Beige
Current Rating (Amps)	1A
Voltage Rating	150V
Manufacturer Pack Quantity	1,000
MSL Level	1 (Unlimited)
Popularity	Medium
Supply and Demand Status	Balance
Win Source Part Number	806928-DF14H-20P-1.25H(56)
Ultra Librarian 3D Model	Ultra Librarian DF14H-20P-1.25H(56) CAD Model

Alternative Products

Description

The Hirose Electric Co Ltd 806928-DF14H-20P-1.25H(56) header connector features 20 male pin contacts and a board edge/cutout, surface mount/right angle mounting style.

Contacts: 20 male pin
Mounting Style: Board Edge/Cutout, Surface Mount/Right Angle
Retention: Solder
Contact Material: Brass
Voltage Rating: 150V
Flammability Rating: UL94 V-0
Pitch Mating: 0.049"
Contact Finish: Gold
Contact Finish Thickness: 3.90μin (0.099μm)
Insulation Material: Polyamide (PA), Nylon
Shrouded: 4 walls
Insulation Height: 0.094" (2.40mm)
Temperature Range: -35°C to 85°C
