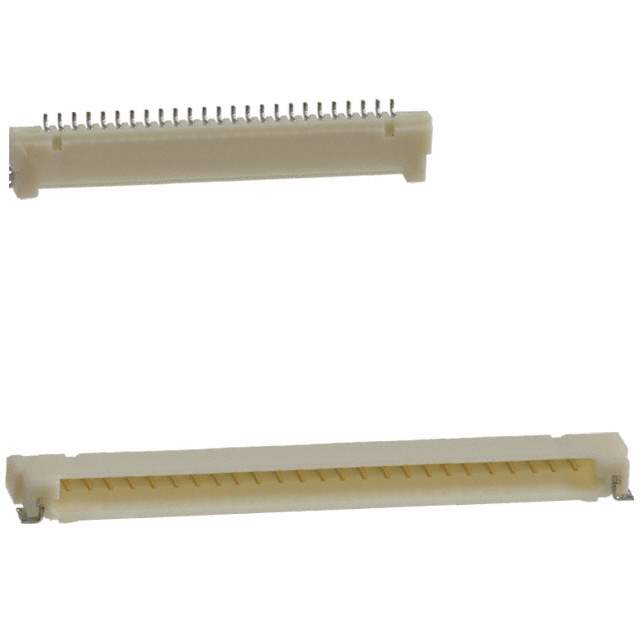

DF14A-25P-1.25H(25) Real Image
Same model may have multiple batches, images only for reference.

DF14A-25P-1.25H(25)

Part No DF14A-25P-1.25H(25)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HEADER 25POS 1.25MM R/A SMD
Datasheet
DF14A-25P-1.25H(25) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Hirose Electric Co Ltd
Packaging Tube/Rail
Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.049" (1.25mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 25
Number of Positions Loaded All
Number of Rows 1
Mounting Surface Mount, Right Angle
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.086" (2.20mm)
Insulation Height 0.098" (2.50mm)
Contact Shape Square
Contact Finish - Mating Tin-Copper
Contact Finish Thickness - Mating 3.9μin (0.10μm)
Insulation Material Polyamide (PA), Nylon
Features Solder Retention
Temperature Range - Operating -25°C to 85°C
Material Flammability Rating UL94 V-0
Insulation Color Beige
Current Rating 1A
Voltage Rating 150V
Mated Stacking Heights 2.5mm
Win Source Part Number 134749-DF14A-25P-1.25H(25)
Popularity Medium
Supply and Demand Status Limited
Quantity per package 13
Ultra Librarian 3D Model Ultra Librarian DF14A-25P-1.25H(25) CAD Model

Description

Product Overview

The DF14A-25P-1.25H(25) is a versatile electronic connector perfect for a range of industrial and consumer applications. Known for its sturdy construction and reliable performance, it offers seamless compatibility with numerous electronic systems.

Features and Benefits

  • Wide Compatibility: Can be integrated into various devices with ease.
  • Durable Build: Resists both mechanical wear and environmental factors.
  • Precision Engineering: Guarantees reliable signal integrity.
  • Cost-Effective: Offers excellent value for its performance.”

Applications

  • Consumer Gadgets
  • Automation Equipment
  • Healthcare Monitoring Systems
  • Energy Management Systems

The DF14A-25P-1.25H(25) offers excellent endurance and is crafted for optimal performance across diverse applications, making it a wise choice for tech enthusiasts and professionals alike.
