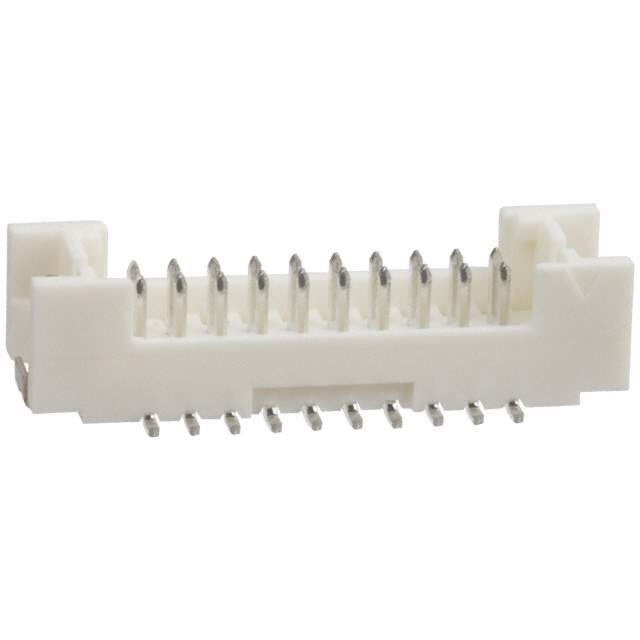

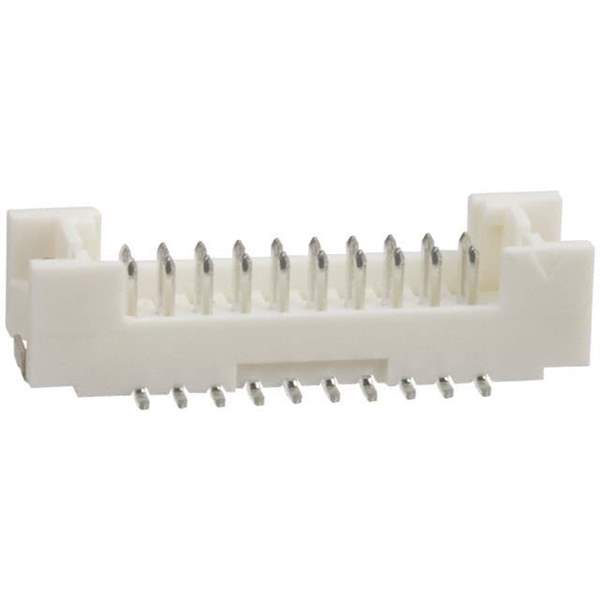

DF13EA-20DP-1.25V(21) Real Image
Same model may have multiple batches, images only for reference.

DF13EA-20DP-1.25V(21)

Part No DF13EA-20DP-1.25V(21)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Hirose Electric Co Ltd
Series DF13
Package Tape & Reel
Product Status Obsolete
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.049" (1.25mm)
Number of Positions 20
Number of Rows 2
Row Spacing - Mating 0.049" (1.25mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting SMD (SMT)
Termination Solder
Fastening Type Push-Pull
Insulation Height 0.189" (4.80mm)
Contact Shape Square
Contact Finish - Mating Tin-Copper
Contact Finish Thickness - Mating 39.4µin (1.00µm)
Contact Material Brass
Insulation Material Polyamide (PA), Nylon
Features Solder Retention
Temperature Range - Operating -35°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Beige
Current Rating (Amps) 1A
Voltage Rating 150V
Mated Stacking Heights 5.8mm
Other Names H125399CT,536-0571-0-21,H125399TR,H125399DKR
Standard Package 1,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293330-DF13EA-20DP-1.25V(21)
Ultra Librarian 3D Model Ultra Librarian DF13EA-20DP-1.25V(21) CAD Model

Description

The DF13EA-20DP-1.25V(21) is a male pin header connector with 20 positions in 2 rows.

  • Fastening Type: Push-Pull
  • Style: Board to cable/wire
  • Contact Material: Brass with a tin-copper finish
  • Insulation Material: Polyamide (PA) nylon
  • Voltage: 150V
  • Current: 1A
  • Mated Stacking Heights: 5.8mm
  • Insulation Height: 0.189" (4.80mm)
  • Flammability Rating: UL94 V-0
  • Ingress Protection: No
  • Packaging: Tape and Reel
  • Standard Package: 1,000
  • Mounting: SMD (SMT)
  • Pitch: 0.049" (1.25mm)
  • Status: Obsolete
