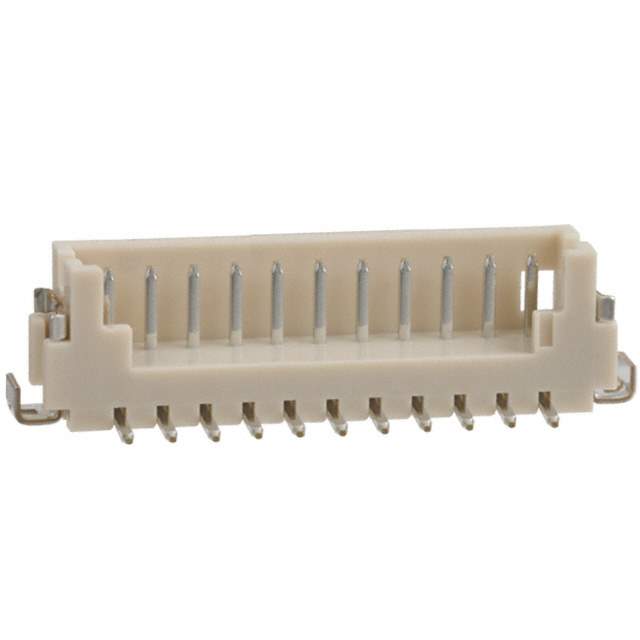

DF13C-11P-1.25V(21) Real Image
Same model may have multiple batches, images only for reference.

DF13C-11P-1.25V(21)

Part No DF13C-11P-1.25V(21)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HEADER 11POS 1.25MM SMD TIN / Conn Shrouded Header (3 Sides) HDR 11 POS 1.25mm Solder ST SMD T/R
Datasheet
DF13C-11P-1.25V(21) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Hirose Electric Co Ltd
Series DF13
Packaging Reel package
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.049" (1.25mm)
Style Board to Cable/Wire
Shrouding Shrouded - 3 Wall
Number of Positions 11
Number of Positions Loaded All
Number of Rows 1
Mounting SMD
Termination Solder
Fastening Type Detent Lock
Insulation Height 0.189" (4.80mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 39μin (1.00μm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA), Nylon
Features Solder Retention
Operating Temperature Range -35°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Beige
Current Rating 1A
Voltage Rating 150V
Mated Stacking Heights 5.8mm
Win Source Part Number 772568-DF13C-11P-1.25V(21)
Popularity Medium
Supply and Demand Status Limited
Quantity per package 1k pcs
Family Name DF13C
Introduction Date January 21, 1999
ECCN EAR99
Country of Origin Japan
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian DF13C-11P-1.25V(21) CAD Model

Description

The Hirose Electric Co Ltd DF13C-11P-1.25V(21) is a header connector that has 11 positions.

  • Package: Reel
  • Solder Retention: Yes
  • Contact Type: Male Pin
  • Positions Loaded: All
  • Rows: One
  • Termination: Soldering
  • Fastening Type: Detent lock
  • Contact Material: Brass
  • Voltage Rating: 150V
  • Current Rating: 1A
  • Style: Board to cable/wire
  • Pitch-Mating: 0.049" (1.25mm)
  • Contact Finish-Mating: Tin
  • Contact Finish Thickness-Mating: 39μin (1.00μm)
  • Contact Finish-Post: Tin
  • Shrouding: 3 walls
  • Insulation Material: Polyamide (PA), nylon
  • Package Quantity: 1k pcs
  • ECCN: EAR99
  • HTSUS: N/A
